Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot

Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot
Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot

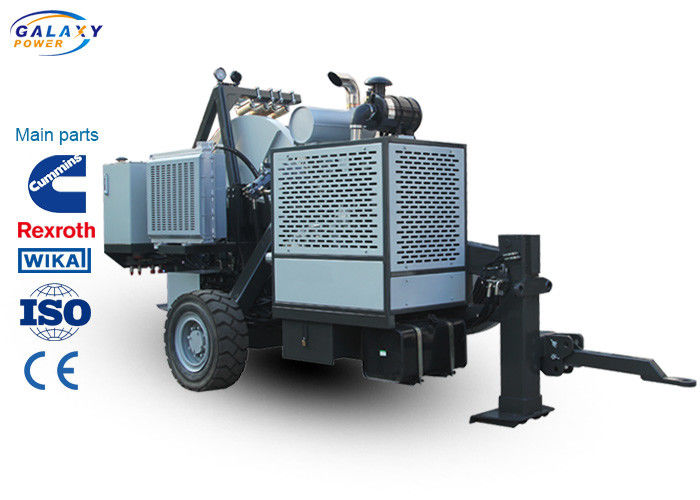

Large Image :  Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: CE,ISO
Model Number: GX2x40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Bulk
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot

Description
Maximum Intermittent Tension: 2×45N Corresponding Speed: 2.5km/h
Correspending Tension: 2×20N Slot Number: 2×5
Total Weight: 6230kg Trial Traverse Diameter: 40mm
Engine: Cummins Certificate: CE ISO
High Light:

cable pulling equipment

,

genset diesel generator

Transmission Line Equipment​ for Twin conductors Hydraulic Tensioner with German Rexroth and USA Cummins





Product Introduction

Hydraulic tensioner fit to string one or two conductors or optical fiber cables.

One hydraulic circuit to tension at constant force even varying the speed of stringing.

Possibility to use the machine as a puller for recovering conductors.

  •  One pair of steel capstans lined with multi-grooved nylon sectors.
  •  Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.
  •  Device to control low-force tensions (2-20KN), specially fit for optical fibers.
  •  Freewheeling disconnection(neutral) of capstans.
  •  Two back fix conductor-drivers with nylon rellers.
  •  Chassis with rigid axle, manual brake and detachable drawbar for towing at low speed in workplace.
  •  Stabilisers, share and attachments for anchoring the machine.
  •  Heat exchanger to cool the oil in the hydraulic circuit.
  •  Two auxiliary hydraulic circuits for controlling 1 or 2 reelstands.
  •  Grounding connection point.

Performance Parameter

Maximum intermittent tension 2×45KN
Maximum sustained tension 2×40KN
Correspending speed 2.5km/h
Maximum pay-off speed 5km/h
Corresponding tension 2×20KN
Maximum back-traping force 2×35KN
Maximum back-traping speed 5km/h





Main Configuration Instructions

Engine Cummins
Reduction gear German Rexroth
Hydraulic motor German Rexroth
Pressure gage German





Structure Parameter

Bottom diameter of tension wheel groove 1300/1500mm
Trial traverse diameter 40mm
Slot number 2×5
Total weight 6230kg
Boundary dimension 4450×2350×2700mm





Engine

Feeding diesel
Cooling system water
Electric system 24V

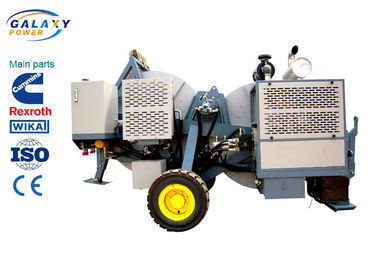

Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot 0

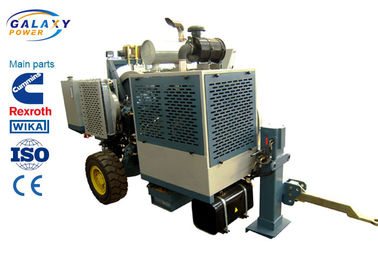

Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot 1

Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot 2

Twin Conductors Tension Stringing Equipment Hydraulic Tensioner Total 6230kg 2×5 Slot 3
