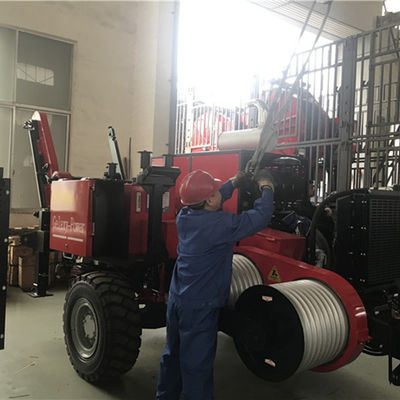

Transmission Overhead Line Diesel 9T Pulling Wire Stringing Equipment

Transmission Overhead Line Diesel  9T Pulling Wire Stringing Equipment
Transmission Overhead Line Diesel  9T Pulling Wire Stringing Equipment
Transmission Overhead Line Diesel  9T Pulling Wire Stringing Equipment Transmission Overhead Line Diesel  9T Pulling Wire Stringing Equipment Transmission Overhead Line Diesel  9T Pulling Wire Stringing Equipment Transmission Overhead Line Diesel  9T Pulling Wire Stringing Equipment

Large Image :  Transmission Overhead Line Diesel 9T Pulling Wire Stringing Equipment

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GS90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per monrh

Transmission Overhead Line Diesel 9T Pulling Wire Stringing Equipment

Description
Machine: 9T Pulling Wire Stringing Equipment Engine: Diesel Cummins
Main Pump: German Rexroth Bull-wheel Diameter: 540mm
Groove Number: 8 Max Rope Diameter: 21mm
Max Diameter Of Rope Reel: 1400mm Application: Overhead Power Lines Construction
High Light:

overhead line construction tools

,

manual chain block


SA-QY-90 Transmission Overhead Line Diesel 9T Pulling Wire Stringing Equipment


9Ton Pulling Wire Stringing Equiment Characteristic

1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.

2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.

3. Maximum traction force can be preset, automatic overload protection.

4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.

5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.

6. Trailer type structure,rigid scaffold,attractive appearance.



9Ton Pulling Wire Stringing Equiment Performance
Max intermittent pull 90kN
Max continuous pull 80kN
Speed at max pull 2.5km/h
Max speed 5km/h
Pull at max speed 40kN





9Ton Pulling Wire Stringing Equiment Engine
Diesel 118kw(158hp)
Cooling system water
Electrical system 24V

9Ton Pulling Wire Stringing Equiment Characteristics
Bull-wheel diameter 540mm
Groove number 8
Max rope diameter 21mm
Max diameter of rope reel 1400mm
Total weight 4280kg
Overall dimension 4250×2100×2500mm





9Ton Pulling Wire Stringing Equiment Main Configuration
Engine Cummins
Main pump German Rexroth
Main motor speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German WIKA
Operating handle German Rexroth





9Ton Pulling Wire Stringing Equiment Configuration
·Hydraulic dynamometer with set-point and automatic control of maximum pull
·Hydraulic oil cooling system
·Control instruments for hydraulic system and diesel engine
·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
·Hydraulic front stabilizer
·Grounding connection point


9Ton Pulling Wire Stringing Equiment Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided
with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced
to "0") by automatically adjusting the operation speed according to the friction and unexpected loads
which may occur.


9Ton Pulling Wire Stringing Equiment Additional Devices
·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft ·Digital speed and meter counter (extra charge)
