Extra Shaft Hydraulic Puller Tensioner Max Intermittent Pull 40KN 77kw Diesel

Extra Shaft Hydraulic Puller Tensioner Max Intermittent Pull 40KN 77kw Diesel
Extra Shaft Hydraulic Puller Tensioner Max Intermittent Pull 40KN 77kw Diesel

Large Image :  Extra Shaft Hydraulic Puller Tensioner Max Intermittent Pull 40KN 77kw Diesel

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GS40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month

Extra Shaft Hydraulic Puller Tensioner Max Intermittent Pull 40KN 77kw Diesel

Description
Type: Hydraulic Puller Max Continuous Pull: 30KN
Speed At Max Pull: 2.5km/h Max Speed: 5km/h
Pull At Max Speed: 20KN Diesel: 77kw(103hp)
High Light:

conductor stringing machine

,

transmission line stringing tools

Stringing Equipment Max Intermittent Pull 40KN Hydraulic Conductor Laying Puller



Together with the tensioner, this model allows tension threading of 220kV lines in mountainous and hilly areas and can be used for traction threading of OPGW or ADSS cables in a variety of terrains.



Quick Detail

  •  Model: GS40
  •  Type: Hydraulic Puller
  •  Overall dimension: 3600×2600×2200mm

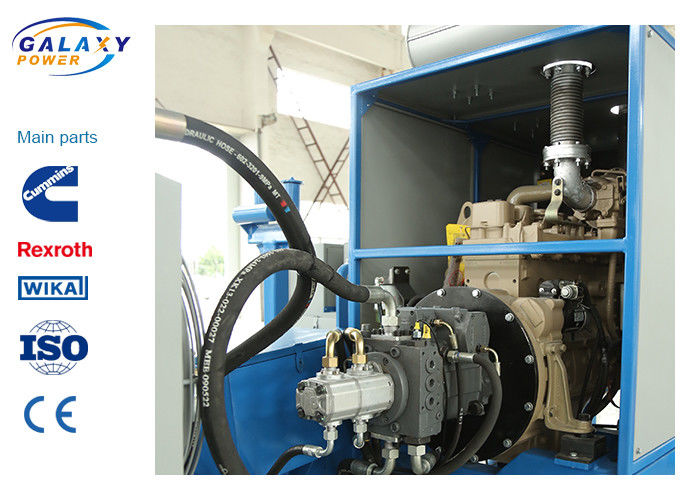

  •  Engine: Cummins
  •  Main moter speed reducer :German Rexroth

Configuration

  •  Hydraulic dynamometer with set-point and automatic control of maximum pull
  •  Hydraulic oil cooling system
  •  Hydraulic front stabilizer
  •  Grounding connection point
  •  Control instruments for hydraulic system and diesel engine
  •  On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200

Additional Devices

  •  Lighting system for the trailer
  •  Trailer for towing at max speed of 30 km/h
  •  Extra shaft
  •  Swivel guide rope roller

Hydraulic Transmission

Closed hydraulic circuit for reducing speed changes in both directions of rotation.

The machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur



Performance parameter

Model   GS40 GS60 GS90 GS120 GS150 GS180 GS220 GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180 220 280 380
Max continuous pull KN 30 50 80 100 120 150 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diese kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173) 239(320) 239(320) 298(400) 440(590)
Cooling system   Water Water Water Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 600 600 700 760 960 960
Groove number   7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 27 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800 12600 13600
