Product Details:
|
| Max Intermittent Pull: | 120KN | Max Continuous Pull: | 100KN |
|---|---|---|---|
| Speed At Max Pull: | 2.5km/h | Pull At Max Speed: | 50KN |
| Bull-wheel Diameter: | 600mm | Groove Number: | 10 |
| Max Diameter Of Rope Reel: | 1400mm | Overall Dimension: | 4000×2300×2300mm |
| Total Weight: | 4800kg | Type: | Hydraulic Puller |
| High Light: | conductor stringing machine,transmission line stringing tools |
||
Stringing Equipment GS120 Hydraulic Puller Machine Max Continuous Pulling force 120KN
This machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands. And it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Quick Detail
♦ Model: GS120
♦ Overall dimension: 4000×2300×2300mm
Configuration
♦ Hydraulic front stabilizer
♦ Hydraulic oil cooling system
♦ Control instruments for hydraulic systems and diesel engines
Performance parameter
| Model | GS40 | GS60 | GS90 | GS120 | GS150 | GS180 | GS220 | GS280 | GS380 | |
| Max intermittent pull | KN | 40 | 60 | 90 | 120 | 150 | 180 | 220 | 280 | 380 |
| Max continuous pull | KN | 30 | 50 | 80 | 100 | 120 | 150 | 180 | 250 | 350 |
| Speed at max pull | km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max speed | km/h | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Pull at max speed | KN | 20 | 25 | 40 | 50 | 60 | 75 | 90 | 120 | 170 |
| Diese | kw(hp) | 77(103) | 77(103) | 118(158) | 129(173) | 129(173) | 239(320) | 239(320) | 298(400) | 440(590) |
| Cooling system | Water | Water | Water | Water | Water | Water | Water | Water | Water | |
| Electrical system | V | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Bull-wheel diamete | mm | 400 | 450 | 540 | 600 | 600 | 700 | 760 | 960 | 960 |
| Groove number | 7 | 7 | 8 | 10 | 10 | 10 | 10 | 11 | 11 | |
| Max rope diameter | mm | 16 | 18 | 21 | 24 | 24 | 27 | 30 | 38 | 38 |
| Max diameter of rope reel | mm | 1200 | 1400 | 1400 | 1400 | 1600 | 1400 | 1600 | 1600 | 1900 |
| Total weight | kg | 3000 | 3500 | 4680 | 4800 | 5500 | 6800 | 6800 | 12600 | 13600 |

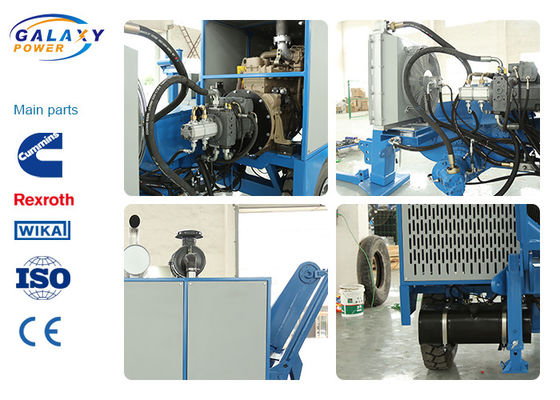

| Main Configuration | |
| Engine | Cummins |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Main moter speed reducer | |
| Main pump | |
| Tail bracket hoisting motor | American Eton |
| Additional Devices | Lighting system for the trailer |
| Extra shaft | |
| Swivel guide rope roller | |
| Hydraulic rope clamp for reel change | |
| Trailer for towing at max speed of 30 km/h | |
| Digital speed and meter counter (extra charge) | |
