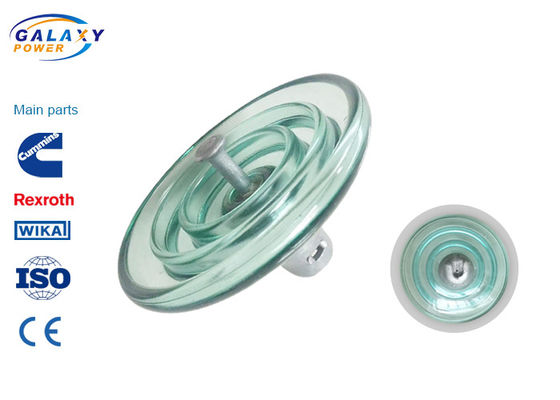

Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators

Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators
Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators

Large Image :  Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators

Product Details:
Place of Origin: China (Mainland)
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GLLXY-100
Payment & Shipping Terms:
Minimum Order Quantity: 500 sets
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50000 sets per month

Light Weight Glass Disc Insulator , Corrosion Resistance Glass Power Line Insulators

Description
Mechanical Damage Load: >100KN Battering Load: >678KN
Electromechanical Load Test Value: 75KN Weight: 4.1kg
Nominal Height: 146mm Nominal Diameter: 255mm
Minimum Nominal Creepage Distance: 320mm Product Name: Suspension Toughened Glass Insulator
High Light:

glass disc insulator

,

glass power line insulators

Transmission Line Accessories High Voltage Disc/Suspension Type Anti-pollution Toughened Glass Insulator





Product advantages

  •  Excellent mechanical performance
  •  Light weight
  •  Good pollution flashover resistance
  •  Excellent electrical corrosion resistance
  •  Aging resistance
  •  Good structural stability
  •  High line operation efficiency

Product parameters

Model GLLXY-70 GLLXY1-70 GLLXY-100 GLLXY-120 GLLXY3-160 GLLXY3-210 GLLXY-240 GLLXY-300

Mechanical damage load≥

KN

70 70 100 120 160 210 240 300

Battering load≥

KN

565 565 678 678 1017 1017 1017 1017

Electromechanical load test value/h

KN

52.5 52.5 75 90 120 157.5 180 225

Nominal Height H

mm

127 146 146 146 155 170 170 195

Nominal diameter of insulator D

mm

255 255 255 255 280 280 280 320

Minimum nominal creepage distance

mm

320 320 320 320 380 390 390 485

Peak voltage tolerance for lightning full - wave shock

kv

≥100 ≥100 ≥100 ≥100 ≥105 ≥105 ≥105 ≥105







Product characteristics

  •  Made of toughened glass. Because of the high mechanical strength of the glass insulator surface, it is not easy to crack the surface. The electrical strength of glass generally remains constant throughout the operation period, and the aging process of glass is much slower than that of porcelain.
  •  Insulator is a special insulation control, which can play an important role in overhead transmission lines.
  •  In the early years, insulators were mostly used for utility poles, and slowly developed from one end of the high voltage wire connection tower to hang many disk-shaped insulators, which were usually made of glass or ceramics to increase the distance of climbing, and were called insulators.
  •  Insulators should not fail due to various mechanical and electrical stresses caused by changes in the environment and electrical load conditions, otherwise insulators will not play a significant role, which will damage the service life of the entire line.
  •  Insulator is one of the key components of HV transmission line, and its performance directly affects the operation safety of the whole transmission line. Glass insulators are widely used because of their zero-value self-breaking and easy maintenance.
