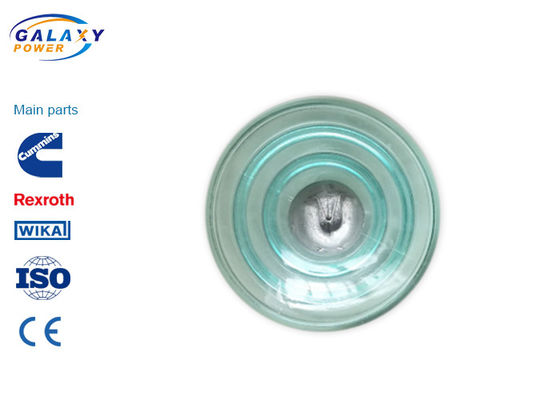

Disc Forged Transmission Line Accessories Weight 4.2kg High Mechanical Strength

Disc Forged Transmission Line Accessories Weight 4.2kg High Mechanical Strength
Disc Forged Transmission Line Accessories Weight 4.2kg High Mechanical Strength

Large Image :  Disc Forged Transmission Line Accessories Weight 4.2kg High Mechanical Strength

Product Details:
Place of Origin: China (Mainland)
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GLLXY-120
Payment & Shipping Terms:
Minimum Order Quantity: 500 sets
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50000 sets per month

Disc Forged Transmission Line Accessories Weight 4.2kg High Mechanical Strength

Description
Mechanical Damage Load: >120KN Battering Load: >678KN
Electromechanical Load Test Value: 90KN Weight: 4.2kg
Nominal Height: 146mm Nominal Diameter: 255mm
Minimum Nominal Creepage Distance: 320mm Type: Toughened Glass Insulator
High Light:

high voltage glass insulators

,

glass power line insulators

Transmission Line Accessories High Voltage Disc/Forged Type Anti-fouling Suspension Toughened Glass Insulator





Product advantages

  •  Excellent mechanical performance
  •  Light weight
  •  Good pollution flashover resistance
  •  Good structural stability
  •  High line operation efficiency
  •  Excellent electrical corrosion resistance

Product parameters

Model GLLXY-70 GLLXY1-70 GLLXY-100 GLLXY-120 GLLXY3-160 GLLXY3-210 GLLXY-240 GLLXY-300

Mechanical damage load≥

KN

70 70 100 120 160 210 240 300

Battering load≥

KN

565 565 678 678 1017 1017 1017 1017

Electromechanical load test value/h

KN

52.5 52.5 75 90 120 157.5 180 225

Nominal Height H

mm

127 146 146 146 155 170 170 195

Nominal diameter of insulator D

mm

255 255 255 255 280 280 280 320

Minimum nominal creepage distance

mm

320 320 320 320 380 390 390 485

Peak voltage tolerance for lightning full - wave shock

kv

≥100 ≥100 ≥100 ≥100 ≥105 ≥105 ≥105 ≥105







Product characteristics

  •  Made of toughened glass. Because of the high mechanical strength of the glass insulator surface, it is not easy to crack the surface. The electrical strength of glass generally remains constant throughout the operation period, and the aging process of glass is much slower than that of porcelain.
  •  Using glass insulator, it can cancel the operation process of insulator of charged periodic preventive test. This is due to every damage to tempered glass causes damage to the insulator, which operators can easily find when patrolling the wire.
  •  Insulator is a special insulation control, which can play an important role in overhead transmission lines.
  •  In the early years, insulators were mostly used in poles, and gradually developed into high-voltage wire towers with a number of disc-shaped insulators hanging at one end. They were made of glass or ceramics to increase the creeping distance.
  •  Insulators should not fail due to various mechanical and electrical stresses caused by changes in the environment and electrical load conditions, otherwise insulators will not play a significant role, which will damage the service life of the entire line.
