Product Details:
|
| Type: | Head Board For Bundled Conductor | Description: | One Rope Pulling Two Conductors |
|---|---|---|---|
| Rated Load: | 80kN | Weight: | 17kg |
| Pulley Wheel Width: | 100mm | Remark: | Conductor Separated |
| High Light: | glass disc insulator,high voltage glass insulators |
||

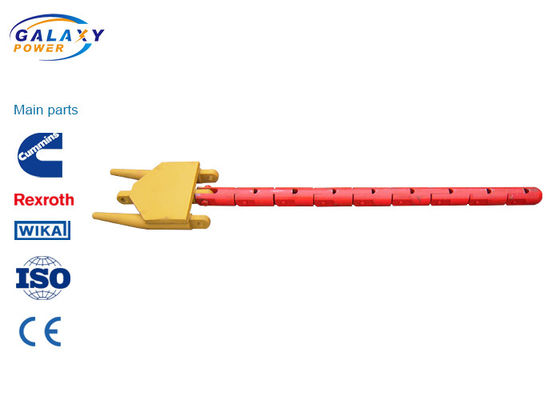

Transmission Line Accessories Head Board/Running Board For Bundled Conductor
The head board is designed to connect the pulling rope (max 28mm) with 2 to 5 bundled conductors. Special models with different characteristics can be designed according to customer's needs.
|
Rated load (kN) |
Weight (kg) |
Pulley wheel width (mm) |
Remark |
| 60 | 12.5 | 75 | Conductor separated |
| 80 | 17 | 100 | |
| 130 | 110 | 110 | |
| 180 | 125 | 125 | |
| 100 | 99 | 100 | |
| 130 | 110 | ||
| 130 | 96 | 100 | |
| 180 | 90 | 110 | |
| 250 | 105 | 110 | |
| 320 | 150 | 125 | |
| 250 | 140 | 100 | |
| 80 | 100 | 75 | Balance Pulley |
| 80 | 100 | 100 | |
| 80 | 100 | 110 | |
| 80 | 100 | 75 | |
| 100 | 114 | 100 | |
| 130 | 130 | 110 | |
| 180 | 140 | 110 | |
| 180 | 155 | 125 | |
| 130 | 127 | 100 | |
| 130 | 140 | 110 | |
| 180 | 155 | 110 | |
| 180 | 160 | 125 |
