49.2hp / 36kw Underground Puller , Underground Wire Pulling Equipment

49.2hp / 36kw Underground Puller , Underground Wire Pulling Equipment
49.2hp / 36kw Underground Puller , Underground Wire Pulling Equipment

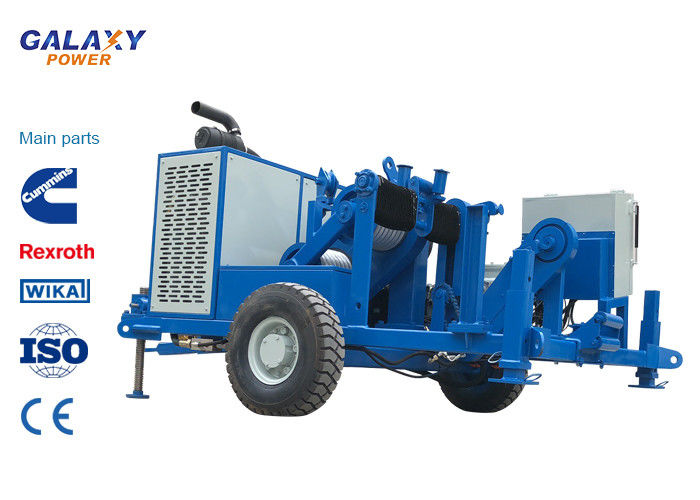

Large Image :  49.2hp / 36kw Underground Puller , Underground Wire Pulling Equipment

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001
Model Number: GP100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Contact Now

49.2hp / 36kw Underground Puller , Underground Wire Pulling Equipment

Description
Max Pull Force: 100kN Diesel: 49.2hp
Continuous Pull Effort: 80kN Type: Underground Cable Laying Machine
OEM Service: YES Engine: Yanmar Japan
High Light:

cable pulling tools equipment

,

electric wire pulling equipment

Underground Pulling Equipment Yanmar Japan 49.2hp/36kw Underground Puller



Additional Devices

  1. Lighting system for the trailer
  2. The heat exchanger cools the oil in the hydraulic circuit
  3. Rear tension roller with hydraulic drive
  4. Swivel guide rope roller
  5. Digital speed and meter counter (extra charge)
  6. Chassis, with damping shaft, tires, traction lever, Trailer for towing at max speed of 30 km/h
  7. Accessories for anchoring and lifting

Main Configuration

Engine Yanmar Japan
Hydraulic motor Rexroth German
Hydraulic pump Danfoss
Hydraulic meter German
Operating handle Bondioli & Pavesi Italy
Hydraulic valve Sun USA



  1. Max pull force: 100kN
  2. Diesel: Yanmar Japan 49.2hp/36kw
  3. Continuous pull effort: 80kN
  4. Max speed: 83m/min
  5. Max speed at Continuous pull: 17m/min
  6. Pull at max speed: 15kN
  7. Maximum cable diameter:80 mm
  8. Capstans: 350x650mm
  9. Total weight: 3350kg
  10. Overall dimension (length*width*height): 4000*2200*1800mm

49.2hp / 36kw Underground Puller , Underground Wire Pulling Equipment 0
