Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy

Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy
Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy

Large Image :  Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO9001
Model Number: GS60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 10-30days
Supply Ability: 80 sets per month

Hydraulic Pulley Cummins Engine Wire Stringing Equipment With Low Noisy

Description
Max Intermittent Pull: 60kN Diesel: 77kw(103hp)
Speed At Max Pull: 2.5km/h Bull-wheel Diameter: 450mm
Overall Dimension: 3800*2100 *2300 Engine: Cummins
Groove Number: 7 Type: Hydraulic Pulley With Cummins Engine
High Light:

cable pulling tools equipment

,

pulling machine equipment

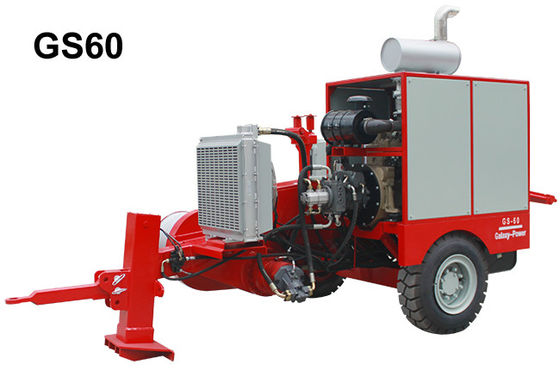

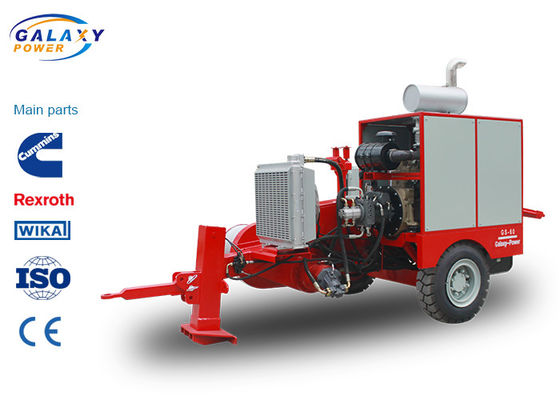

Equipment GS60 77kw(103hp) Hydraulic Pulley With Cummins Engine



GS60 hydraulic pulley allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands.
Besides, this machine can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.



Model Max intermittent pull Max continuous pull Speed at max pull Max speed Pull at max speed Bull-wheel diameter Groove number Max rope diameter Max diameter of rope reel Total weight Overall diaension
kN kN km/h km/h kN mm   mm mm kg mm
GS40 40 30 2.5 5 20 400 7 16 1200 3000

3600*2600

*2200

GS60 60 50 2.5 5 25 450 7 18 1400 3500

3800*2100

*2300

GS90 90 80 2.5 5 40 540 8 21 1400 4680

4000*2200

*2100

GS120 120 100 2.5 5 50 600 10 24 1400 4800

4000*2300

*2300

GS150 150 120 2.5 5 60 600 10 24 1600 5500

4300*2300

*2400

GS180 180 150 2.5 5 75 700 10 27 1400 6800

4300*2360

*2380

GS220 220 180 2.5 5 90 760 10 30 1600 6800

5300*2360

*2750

GS280 280 250 2.5 5 120 960 11 38 1600 12800

5800*2500

*2850

GS380 380 350 2.5 5 170 960 11 38 1900 13600

6000*2600

*2800



Model

Diesel

(kw(hp))

Cooling system

Electrical system

(V)

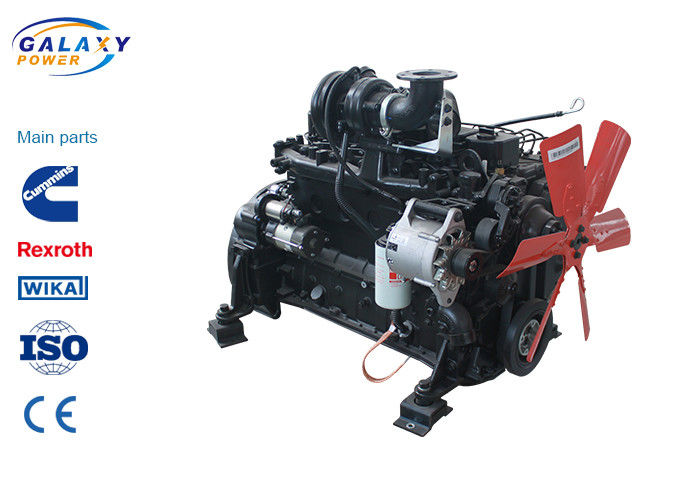

Engine Main pump Main motor speed reducer Tail bracket hoisting motor Hydraulic meter Operating handle
GS40 77(103) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS60 77(103) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS90 118(158) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS120 129(173) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS150 129(173) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS180 239(320) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS220 239(320) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS280 298(400) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
GS380 440(590) Water 24 Cummins German Rexroth German Rexroth American Eton German German Rexroth
