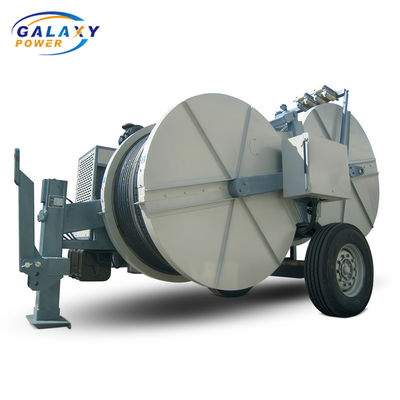

GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling

GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling
GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling

Large Image :  GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001
Model Number: GL2x70TP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month

GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling

Description
Max Pull: 2x70kN/1x140kN Speed At Max Pull: 2km/h
Bull-wheel Diameter: 1700mm Max Speed: 4.5km/h
Pull At Max Speed: 2x30kN/1x60kN Diesel: 129kw(173hp)
Max Tension: 2x70kN/1x140kN Total Weight: 8000kg
High Light:

cable pulling tools equipment

,

pulling machine equipment

GL2x70TP 173hp Hydraulic Puller with Tensioner Transmission Line Cable Pulling Equipment



The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.



Configuration

  • 2 Negative self-acting hydraulic brakes
  • 2 Hydraulic dynamometers with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Digital meter counters
  • Control instruments for hydraulic system and diesel engine
  • Rigid axles for towing at max speed of 30km/h with mechanical parking brake
  • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  • Hydraulic front stabilizer

Hydraulic Transmission

2 Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Additional Devices

  • Lighting system for the trailer
  • Hydraulic brake system for the trailer(extra charge)
  • 2 Hydraulic conductor clamps for drum change operations (extra charge)
  • Electronic pull and speed recorder
Model GL25TP GL35TP GL45TP GL90TP GL140TP GL2X45TP GL2X70TP
Puller

Max pull

kN

25 35 45 90 140 2x45/1x90 2x70/1x140

Speed at max pull

km/h

1.3 2.6 2.7 2.4 1.7 2.4 2

Max speed

km/h

4 4.5 5 5 4 5 4.5

Pull at max speed

kN

8 20 25 44 60 2x22/1x44 2x30/1x60
Tensioner

Max tension

kN

25 35 45 90 140 2x45/1x90 2x70/1x140

Max speed

km/h

5 4.5 5 5 4 5 4.5
Engine

Diesel

kw(hp)

48(64) 48(64) 63(85) 118(158) 129(173) 118(158) 129(173)
Cooling system Water

Electrical system

V

24
Characteristics

Bull-wheel diameter

mm

1500 1200 1500 1500 1500 1500 1700

Max rope diameter

mm

10 13 16 18 24 18 24

Max conductor diameter

mm

36 34 34 40 40 40 46

Total weight

kg

2300 2200 3000 4600 6800 6200 8000

Overall dimension

mm

3520*2000*2200 4000*2000*2300 4700*2200*2300 4700*2300*2700
Main configuration
Engine Cummins
Hydraulic pump German Rexroth
Main motor German Rexroth
Speed reducer German Rexroth
Hydraulic meter German
Operating handle German Rexroth



GL2x70TP 173hp Transmission Line Equipment Hydraulic Puller Cable Pulling 0

COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
