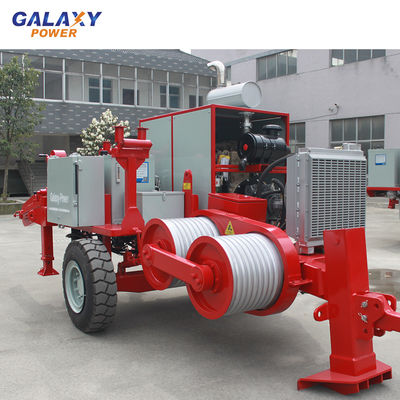

38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment

38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment
38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment 38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment

Large Image :  38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment

Product Details:
Place of Origin: Jiangsu,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 20-30 days
Supply Ability: 100sets/month

38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment

Description
Product Name: 38T Transmission Stringing Equipment Application: Overhead Power Lines Construction
Max Intermittent Pull: 380KN Max Continuous Pull: 350KN
Speed At Max Pull: 2.5km/h Bull-wheel Diameter:: 960mm
Groove Number: 11 Max Rope Diameter: 38mm
High Light:

cable pulling tools equipment

,

pulling machine equipment





38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment





38T Transmission Stringing Equipment Description:


This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle

conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension

stringing of 500kV haulage rope in various terrains.



1.  Transmission Line Stringing Equipment

2.  380kN German Rexroth Pump & Motor Stringing Equipment

3.   Max pull: 380kN
4.  Diesel: Cummins 440kw
5.  Main pump and motor: Rexroth
6.  Max rope diameter: 38mm

7.  Brand:GALAXY





38T Transmission Stringing Equipment Performance :

  1.  Max intermittent pull:380kN
  2.  Max continuous pull: 350kN
  3.  Speed at max pull: 2.5km/h
  4.  Max speed: 5km/h
  5.  Pull at max speed: 170KN



38T Transmission Stringing Equipment Engine:

  1.  Diesel 400kw(590hp)
  2.  Cooling system water
  3.  Electrical system 24V



38T Transmission Stringing Equipment Characteristics:

  1.  Bull-wheel diameter: 960mm
  2.  Groove number: 11
  3.  Max rope diameter : 38mm
  4.  Max diameter of coupling: 100mm
  5.  Electric system: 24V
  6.  Max diameter of rope reel: 1600mm
  7.  Total weight: 12800kg
  8.  Overall dimension (length*width*height): 6000×2500×2850mm
  9.  Diesel: 440KW(590hp)



38T Transmission Stringing Equipment Main configuration:



Engine Cummins
Main pump German Rexroth
Main motor speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German
Operating handle: German Rexroth




Configuration:


Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1900
Hydraulic front stabilizer
Grounding connection point




Hydraulic Transmission:


Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Additional Devices :


Lighting system for the trailer

Air brake system for the trailer
Hydraulic rope clamp for reel change(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter







38T Diesel Hydraulic OPGW Cable Puller Transmission Stringing Equipment 0



Company Information:



Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in R & D,

manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner,

underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical

service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China

which supply more than 200 varieties kinds of goods now.
