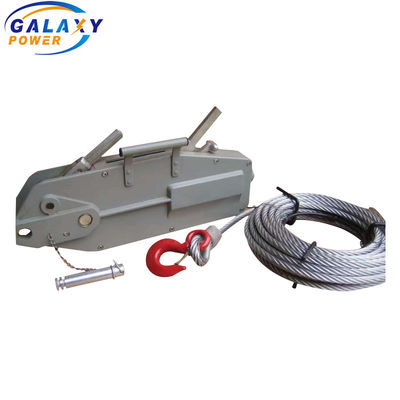

1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed

1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed
1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed
1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed 1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed 1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed 1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed

Large Image :  1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001
Model Number: BYSM-618 1.0
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 15~30 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Sets/Month

1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed

Description
Product Name: Transmission Line Accessories Type: Wire Rope Pulling Hoist
Application: Power Distribution Equipment Rated Load Lifting Capacity: 1T
Wire Rope Diameter: 8mm Hand Force When The Rated: <353N
Wire Rope Standard Length: 10m,20m Forward Handle Effective Length: 825mm
High Light:

glass disc insulator

,

high voltage glass insulators

1T Wire Rope Pulling Hoist Transmission Line Accessories For Lifting With ISO Passed



Quick Detail



Forward lever, backward lever: Placed in tandem providing a slim design and assuring power transfer along the center.



Rope clamp system: Easily disengaged with a lever to smoothly install the wire rope.



Spare shear pins: Two pieces of spare shear pins locked in the carrying handle.



Steel wire rope mounted on a reel: Each rope has been tested by operation, reaching 150% of the rated capacitor.



Anchor bolt: Offers numerous and versatile connection possibilities with load hooks, sling ropes and sling chains.



Description

  1. Scope of application: The wire rope hoist is adapted for use in narrow areas where local space is limited. For field work, high altitude operation, BYSM-618 1.0 type steel wire rope hand plate hoist deep well operation and no mechanical and electrical energy supply site for lifting operation will show special advantages.
  2. How to use: The forward (backward) handle is first pulled to the machine, and then the handle is released by hand to the front of the machine, and the tip can be snapped into the upper step of the housing. At this time, the upper and lower clamps of the front and rear calipers are OK. The opening can be worn (pumped), and then the clamp can be pushed forward and down to release the handle, so that the clamp can clamp the wire rope (or reset) and put into operation.
  3. Working principle: Wire rope hand lever hoist is a manpower wrench handle, with the help of the lever principle to obtain a straight line traction matching the load, alternately acting on a clamp body of the machine core load, running with a supporting load.
  4. The body structure is novel: The machine adopts cast aluminum alloy body with beautiful appearance, compact body, small volume and light weight. Adopt two-stage gear transmission, high-speed helical gear transmission, so the transmission is stable and the noise is small.
  5. High strength of parts: The main parts of the machine are made of high strength alloy steel material and processed by many special heat treatment processes. The upper and lower hooks are made of high-strength alloy steel, which has very strong heat treatment. High toughness, even if the body is damaged by overload, the hook will only produce sag deformation without brittle fracture.

Parameter:



Model   BYSM-618 0.8 BYSM-618 1.0 BYSM-618 1.6 BYSM-618 3.2 BYSM-618 5.4
Rated load lifting capacity ton 0.8 1 1.6 3.2 5.4
Stroke when the rated mm ≥52 ≥52 ≥55 ≥28 ≥30
Forward handle effective length mm 825 825 1200 1200 1200
Transmission series   1 1 1 2 2
Wire rope diameter mm 8 8 11 16 20
Wire rope standard length m 10, 20 10, 20 10, 20 10 10
Net weight kg 6 6 12 23 45
Hand force when the rated N ≤284 ≤353 ≤412 ≤441 ≤745
Packing size mm 428*64*235 428*64*235 545*97*286 660*116*350 800*180*500
