80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool

80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool
80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool 80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool

Large Image :  80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool

Product Details:
Place of Origin: Jiangsu Province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GLCVI
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.

80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool

Description
Product Name: 80KN Hydraulic Drum Elevators Application: Overhead Transmission Line
Material: Welded Steel Capacity: 80KN
Drum Max Width: 1800mm Drum Hole: 83mm
High Light:

Hydraulic Drum Elevators

,

1800mm drum elevators





  80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool





Hydraulic Drum Elevators Quick details:



1. Transmission Line Stringing Equipment Accessories & Tools
2. Hydraulic Drum Elevators
3. Drum Max Width: 1800
4. Rated Load: 80kN
5. Welded Steel with protective coating
6. Drum Hole: 100mm
7. Drum Max Diameter: 2400mm

8. GALAXY Brand

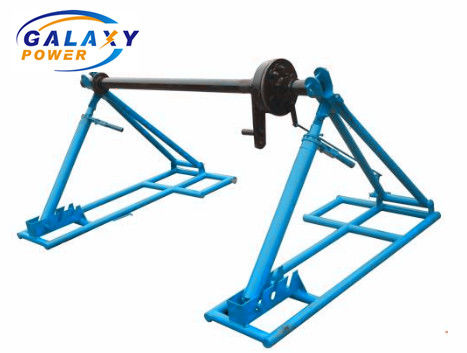

Hydraulic Drum Elevators Description:



Our Large Capacity Hydraulic Conductor Reel Stands is working Connect with

hydraulic tensioner or hydraulic puller tensioner through quick coupling.





Hydraulic Drum Elevators Features:



The Drum elevators are made of welded steel with protective coating,

the frame is completely detachable to reduce dimensions during transport.





Hydraulic Drum Elevators Specification:



Model Drum max size Drum max width Drum hole Capacity Brake force Weight
mm mm mm kN kN kg
GLCVI-226 2400 1500 70 50 2.5 365
GLCVI-227 2400 1800 100 80 2.5 480





80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool 0


Additional Devices:


10 meters soft tube
Disk brake device







Maufacturer Introduction:



Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in

R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic

puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing

accessories and technical service for customer. Galaxy has developed as one of the largest stringing

equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.



80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool 1





Production Line:

We have five production lines.

Main configurations of our machine are from Germany and USA

Engine: American Cummins

Main pump: German Rexroth

Main motor: German Rexroth

Speed reducer: German Rexroth

Tail bracket hoisting motor: Amercian Eton

Hydraulic meter: German

Operating handle: German Rexroth



80KN Hydraulic Drum Elevators Lifting Power Cable Transmission Line Tool 2
