Product Details:
|
| Name: | Ground Cable Pulley Corner Rollers | Breaking Load: | 10KN |
|---|---|---|---|
| Roller Material: | Nylon / Aluminium | Max Cable Diameter: | 200mm |
| Farme Material: | Aluminium | Application: | Laying / Pulling / Guide For Underground Cable |
| High Light: | 10KN cable pulley roller,200mm cable pulley roller,10KN cable pulleys and rollers |
||

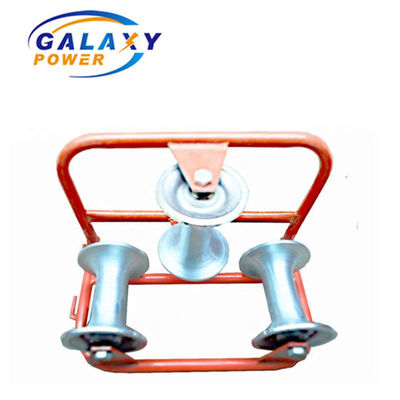

Load 10KN Ground Cable Pulley Corner Rollers For Underground Cable
Ground Cable Pulley Corner Rollers Description
Ground Cable Pulley Corner Rollers is a equipment for laying,pulling,guiding and protecting cable/rope/wire,which is a great way to save time and money. It is aslo called cable pulleys,cable sheaves and so on.Our cable roller often made of nylon and aluminium two materials,the frame is often made of steel and galvanized.It can be used in single one,aslo can be used in series.There are many types for the cable rollers,such as straight cable roller,coner cable rollers,manhole cable rollers, cable feeding sheaves,right angle rollers,hook type sheaves,gin wheel cable roller,single sheave pulley block,double/twin sheave block and so on.
| Model | Rated load (kN) | Applicable cable diameter (mm) | Weight (kg) | ||
| SHL2 | 10 | ≤150 | 12 | ||
| SHL2N | 10 | ≤150 | 10 | ||
| SHL3 | 10 | ≤120 | 11 | ||
| SHL3N | 10 | ≤120 | 9 | ||
| SHL4N | 10 | ≤200 | 26 |
1. Cable Ground Roller , aluminium
Abrasion resistant aluminium rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
2. Cable Ground Roller , steel
Abrasion resistant steel rollers, galvanized steel tube frame
dust- and soil proof ball bearings, large ground clearance
Ground Cable Pulley Corner Rollers Features:
1.Able to carry high loads
2.With chromel stell ball bearing
3.With a high load-bearing capacity
4.Self-lubrication, precision machined and low friction
5.Low noise, stable performance and durable
6.Able to work in sub-zero temperatures and have low rolling resistance
7.Suitable for countless applications: sliding pipe, machine equipment and other sliding systems.
Ground Cable Pulley Corner Rollers Application :
The product is widely used in engineering machinery, electric power, petroleum, mining, coal, metallurgy, paper making, construction, port, cable and other industries, cable tunnels show exhibition place or on the ground put the extension cable and wire release, the product is divided into single-round and three, non fragile cables. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission
Ground Cable Pulley Corner Rollers Useage:
