Product Details:
|
| Product Name: | Mesh Sock Joints Transmission Line Accessories | Application: | Wire Pulling |
|---|---|---|---|
| Type: | One Head | Conductor Size: | 720 Mm2 |
| Rated Load: | 50KN | Breaking Load: | 125 KN |
| High Light: | 125KN mesh sock joints,Wire pulling mesh sock joints |
||
Optical Fiber Cable Sleeve Mesh Sock Joints Transmission Line Accessories For Wire Pulling With 125KN Breaking Load
Product Description :

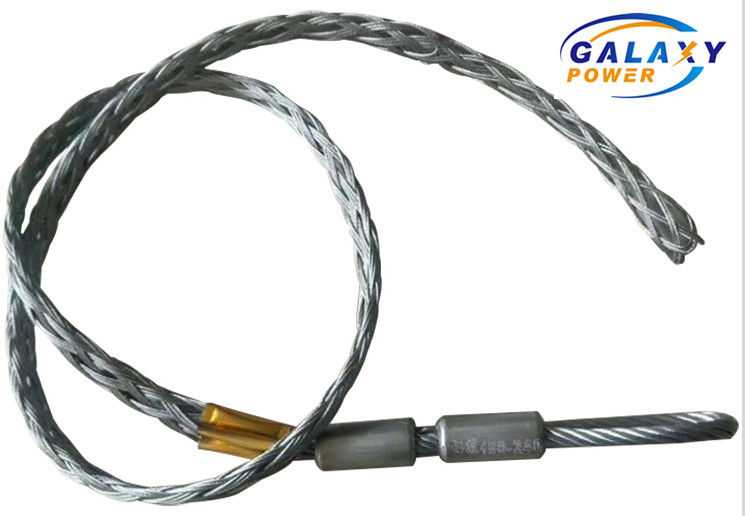

The one head type temporary mesh sock joints are specifically designed to temporarily connect the
cable to the pulling rope. It is applied for electric power ,communication ,optical fiber cable.
They consist of steel wires, which effectively distribute the gripping effect on the cable.
1. Transmission Line Stringing Equipment Accessories & Tools
2. Temporary Mesh Sock Joints
3. Apply for electric power ,communication ,optical fiber cable
Application:
wire rope pulling grip for cable//wire rope sock/ sock grip is used for cable pulling in power line construction.
Characteristic:
Features:
1.It made of top-quality steel through heat treatment and galvanized for surface.
2.It connected for two head,one head is galvanized steel wire rope and the other head contect conductor.
Specification
| Model | Conductor size (mm2) | Rated load (kN) | Breaking load (kN) |
| SLW-1.5 | 70~90 | 15 | 30 |
| SLW-2 | 120~150 | 20 | 40 |
| SLW-2.5 | 185~240 | 25 | 50 |
| SLW-3 | 300~400 | 30 | 60 |
| SLW-4 | 500~630 | 40 | 80 |
| SLW-5 | 720 | 50 | 125 |
| SLW-7 | 900 | 70 | 175 |
Maufacturer Introduction:
Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic
puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
OEM&ODM:
We can do OEM/ODM. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc.
Our products are also very popular and best-selling in China.
