Product Details:
|
| Max Intermittent Tension: | 2x45/1x90kN | Max Continuous Tension: | 2x40/1x80kN |
|---|---|---|---|
| Speed At Max Pull: | 2.5km/h | Max Speed: | 5km/h |
| Tension At Max Speed: | 2x20/1x40kN | Max Reverse Pulling Force: | 2×35/1x70kN |
| Max Reverse Pulling Speed: | 5km/h | Diesel: | 77kw(103hp) |
| Bull-wheel Diameter: | 1300/1500mm | Type: | Hydraulic Tensioner |
| High Light: | electric wire pulling equipment,power cable pulling equipment |
||

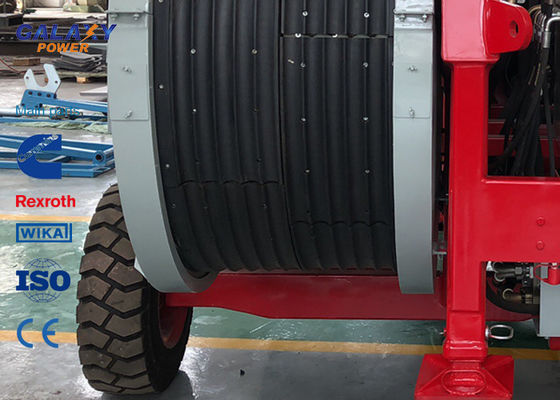

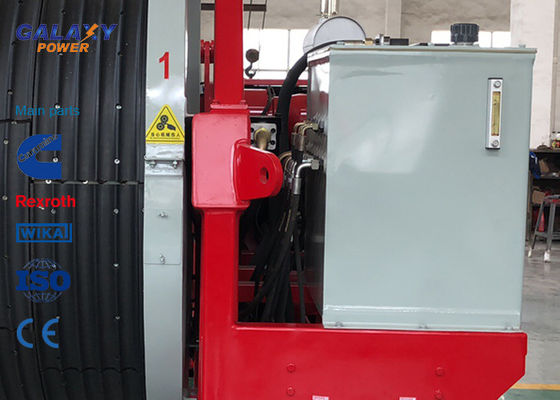

77kw 103hp Cummins Engine Hydraulic Tensioner Max Intermittent Tension 2x45/1x90kN Stringing Equipment
| Max intermittent tension | 2x45/1x90kN |
| Max continuous tension | 2x40/1x80kN |
| Speed at max pull | 2.5km/h |
| Max speed | 5km/h |
| Tension at max speed | 2x20/1x40kN |
| Max reverse pulling force | 2×35/1x70kN |
| Max reverse pulling speed | 5km/h |
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electrical system | 24V |
| Bull-wheel diameter | 1300/1500mm |
| Max conductor diameter | 40mm |
| Groove number | 2x5 |
| Total weight | 6230kg |
| Overall dimension | 4300×2250×2700mm |
| Engine | Cummins |
| Hydraulic pump | GermanRexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
