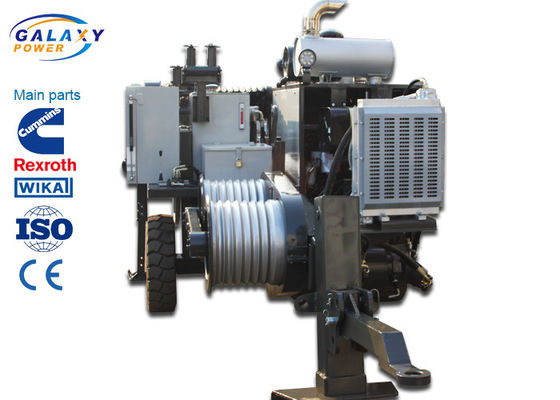

7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable

7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable
7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable 7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable 7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable 7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable

Large Image :  7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GX60
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: bulk
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable

Description
Maximum Tractive Force: 60KN Corresponding Speed: 2.5km/h
Corresponding Tension: 25KN Slot Number: 7
Total Weight: 3500kg Hydraulic Instrument: German
Engine: Cummins Product Name: Transmission Line Equipment
High Light:

cable pulling equipment

,

genset diesel generator

Transmission Line Equipment Hydraulic Pullers GX60 in Overhead Line Construction or Cable Pulling Equipment



Performance Parameter

Maximum tractive force 60KN
Maximum sustained traction 50KN
Correspending speed 2.5km/h
Maximum sustained tractive speed 5km/h
Corresponding tension 25KN



Structure Parameter

Diameter of traction wheel 1300/1500mm
Slot number 7
Maximum wire rope diameter 18mm
Allow for maximum connector diameter 1400mm
Total weight 3500kg
Dimensions of the whole machine 3900×2100×2450mm



Main Configuration Instructions

Engine cummins
Main variable pump German Rexroth
The main motor, reduction gears German Rexroth
Tailstock motor America Eton
Hydraulic instrument German



Hydraulic puller fit to pull one rope in stringing operations of overhead transmission lines.

One hydraulic circuit lets to vary continuously the speed in both directions by operating one only control device.

  •  One pair of multigrooved steel capstans fit for stringing obe steel rope.
  •  Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.
  •  metercounter and speedometer.
  •  Chassis with rigid axle, overrun brake and detachable drawbar for towing at low speed in workplace.
  •  Hydraulic back stabilisers and manual front stabilisers.
  •  Attachments for anchorage and for lifting.
  •  Heat exchanger to cool the oil in the hydraulic circuit.
  •  Reelwinder fit for a 1600-mm-dia reel, with automatic ropewinder.

7 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable 07 Slots Transmission Line Equipment Hydraulic Pullers Overhead Line Construction Cable 1
