60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor
60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor
60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor 60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor 60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor 60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor

Large Image :  60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GS-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: CARTON
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Contact Now

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor

Description
Model: GS-60 Max Intermittent Pull: 60kN
Cooling System: Water Bull-wheel Diameter: 450mm
Overall Dimension (length*width*height): 3800×2100×2300mm Type: Hydraulic Puller
High Light:

manual chain block

,

hand chain hoist

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor





Product Description



GS-60 Hydraulic Puller

  • Model: GS-60
  • Max intermittent pull: 60kN
  • Engine: Cummins
  • Diesel: 77kw(103hp)

Characteristics

  • Bull-wheel diameter: 450mm
  • Groove number: 7
  • Max rope diameter : 18mm
  • Max diameter of rope reel: 1400mm
  • Total weight: 3500kg
  • Overall dimension (length*width*height): 3800×2100×2300mm

Performance

  • Max intermittent pull: 60kN
  • Max continuous pull: 50kN
  • Speed at max pull: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 25kN
Main configuration
  • Engine: Cummins
  • hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • speed reducer: German Rexroth
  • Tail bracket hoisting motor: American Eton
  • Hydraulic meter: German
  • Operating handle: German Rexroth
Engine
  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V
Configuration
  • Hydraulic dynamometer with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
  • Hydraulic front stabilizer
  • Grounding connection point
Additional Devices
  • Lighting system for the trailer
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter (extra charge)

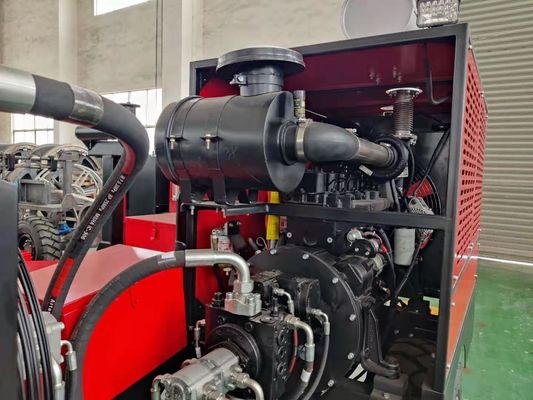

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor 0

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor 1

60KN High-Altitude Overhead Line Hydraulic Traction Electric Construction Tractor 2
