Aluminum Nylon Wheel Conductor Stringing Blocks Straight Line Ground Cable Pulley 150-200mm

Aluminum Nylon Wheel Conductor Stringing Blocks Straight Line Ground Cable Pulley 150-200mm
Aluminum Nylon Wheel Conductor Stringing Blocks Straight Line Ground Cable Pulley 150-200mm

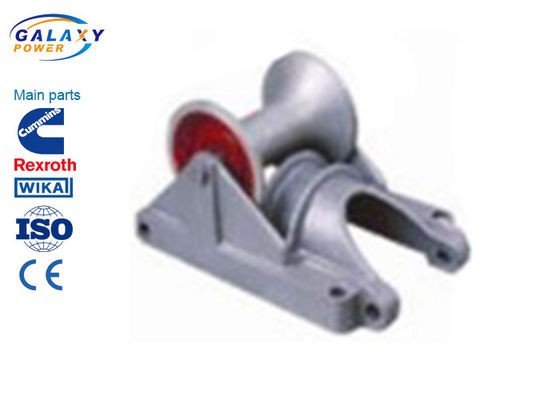

Large Image :  Aluminum Nylon Wheel Conductor Stringing Blocks Straight Line Ground Cable Pulley 150-200mm

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GXSHL
Payment & Shipping Terms:
Minimum Order Quantity: 200 sets
Price: negotiable
Packaging Details: bulk
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per month
Contact Now

Aluminum Nylon Wheel Conductor Stringing Blocks Straight Line Ground Cable Pulley 150-200mm

Description
Rated Load: 5KN Application Cable Diameter: 150-200mm
Weight: 3.6-9.4kg Wheel Material: Aluminum Or Nylon
Name: Straight Line Ground Cable Pulley Conductor Stringing Blocks Function: Setting Cable
High Light:

conductor pulley block

,

wire rope pulley block

Straight Line Ground Cable Pulley Conductor Stringing Blocks with Alternative Aluminum or Nylon Wheel





Product Declaration

  •  Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.
  •  The ground cable rollers and corner cable rollers are made of aluminium, steel. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.

Performance Parameter

Model Rated load (kN) Application cable diameter (mm) Wheel material
GXSHL1 5 150 Aluminum
GXSHL1N 5 150 Nylon
GXSHL1B 5 150 Aluminum
GXSHL1BN 5 150 Nylon
GXSHL2BN 5 160 Nylon
GXSHL3BN 5 200 Nylon
GXSHL1G 5 150 Aluminum
GXSHL1GN 5 150 Nylon
GXSHL2GN 5 160 Nylon
GXSHL3GN 5 200 Nylon
GXSHLG1 5 150 Aluminum
GXSHLG1N 5 150 Nylon


Tag:

conductor pulley block,

wire rope pulley block,

wire stringing blocks
