Product Details:
|
| Maximum Tractive Force: | 280KN | Maximum Sustained Traction: | 250KN |
|---|---|---|---|
| Maximum Sustained Tractive Speed: | 5km/h | Diameter Of Traction Wheel: | 960mm |
| Dimensions Of The Whole Machine: | 5800×2500×2850mm | Total Weight: | 12800kg |
| High Light: | conductor stringing machine,cable pulling tools equipment |
||

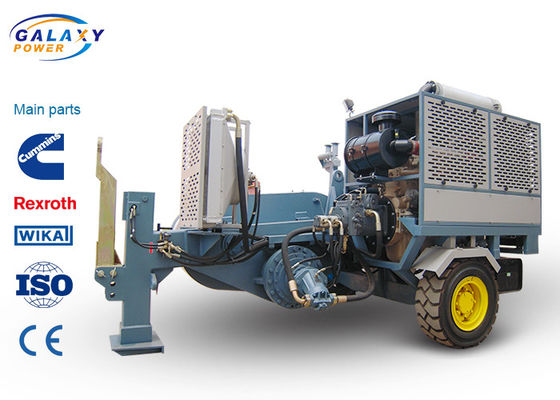

Overhead Line Construction or Cable Pulling Equipment 280KN in Stringing Equipment Hydraulic Pullers
Performance Parameter
| Maximum tractive force | 280KN |
| Maximum sustained traction | 250KN |
| Correspending speed | 2.5km/h |
| Maximum sustained tractive speed | 5km/h |
| Corresponding tension | 120KN |
Structure Parameter
| Diameter of traction wheel | 960mm |
| Slot number | 11 |
| Maximum wire rope diameter | 38mm |
| Allow for maximum connector diameter | 1600mm |
| Total weight | 12800kg |
| Dimensions of the whole machine | 5800×2500×2850mm |
Main Configuration Instructions
| Engine | Cummins |
| Main variable pump | German Rexroth |
| The main motor, reduction gears | German Rexroth |
| Tailstock motor | America Eton |
| Hydraulic instrument | German |
Hydraulic puller fit to pull one rope in stringing operations of overhead transmission lines.
One hydraulic circuit lets to vary continuously the speed in both directions by operating one only control device.
One pair of multigrooved steel capstans fit for stringing obe steel rope.
Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.
metercounter and speedometer.
Chassis with rigid axle, overrun brake and detachable drawbar for towing at low speed in workplace.
Heat exchanger to cool the oil in the hydraulic circuit.
Reelwinder fit for a 1900-mm-dia reel, with automatic ropewinder.
