Product Details:
|
| Bottom Diameter Of Tension Wheel Groove: | 1300mm | Trial Traverse Diameter: | 40mm |
|---|---|---|---|
| Total Weight: | 2300kg | Boundary Dimension: | 3520×2000×1710mm |
| Maximum Intermittent Tension: | 70KN | Maximum Back-traping Force: | 50KN |
| High Light: | electric wire pulling equipment,power cable pulling equipment |
||

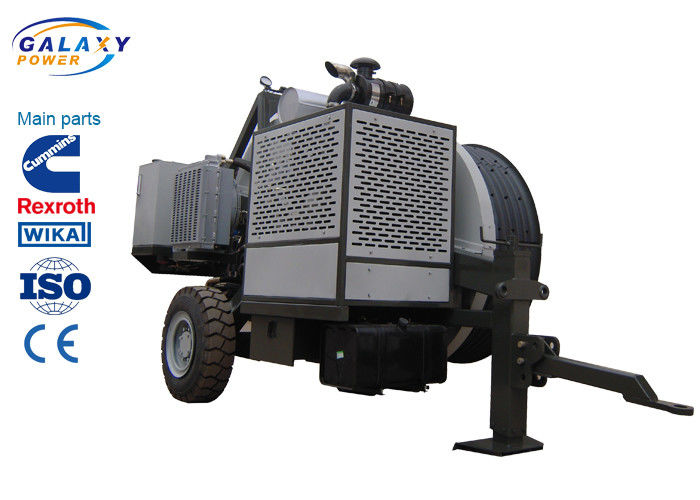

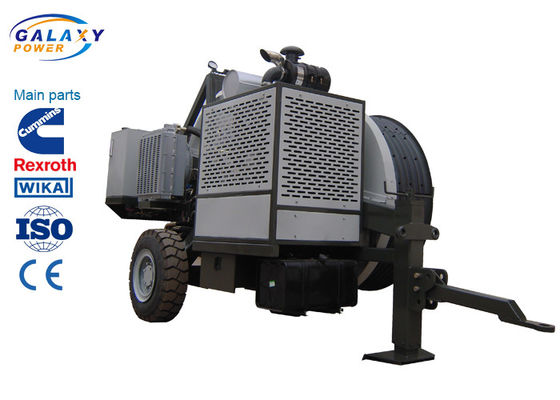

Powerline Equipment Hydraulic Tensioner Equipment 7T with Cummins Engine
Structure Parameter
| Bottom diameter of tension wheel groove | 1300mm |
| Trial traverse diameter | 40mm |
| Slot number | 6 |
| Total weight | 2300kg |
| Boundary dimension | 3520×2000×1710mm |
Performance Parameter
| Maximum intermittent tension | 70KN |
| Maximum sustained tension | 65KN |
| Correspending speed | 2.5km/h |
| Maximum pay-off speed | 5km/h |
| Corresponding tension | 60KN |
| Maximum back-traping force | 50KN |
Main Configuration Instructions
| Engine | Cummins |
| Reduction gear | German Rexroth |
| Hydraulic motor | German Rexroth |
| Pressure gage | German |
| Pressure pump | German Rexroth |
Engine
| Feeding | diesel |
| Cooling system | water |
| Electric system | 24V |
Product Introduction
Hydraulic tensioner GX1×70 fit to string one or two conductors or optical fiber cables.
One hydraulic circuit to tension at constant force even varying the speed of stringing.
One pair of steel capstans lined with multi-grooved nylon sectors.
Machine control panel equipped with hydraulic dynamometer and mechanical metercounter.
Freewheeling disconnection(neutral) of capstans.
Chassis with rigid axle, manual brake and detachable drawbar for towing at low speed in workplace.
Stabilisers, share and attachments for anchoring the machine.
Heat exchanger to cool the oil in the hydraulic circuit.
Grounding connection point.
