Product Details:
|
| Machine: | Compression 650KN Transmission Line Stringing Tool | Max Compression Force: | 650KN |
|---|---|---|---|
| Conductor Size: | ≤500mm2 | Dies: | Aluminium / Steel Hexagonal |
| Rated Pressure: | 94 KN | Max Stroke: | 25mm |
| Power: | Gasoline Hydraulic Pump | Useage: | Mactch With Dies And Pump |
| High Light: | glass disc insulator,high voltage glass insulators |
||
Max Compression 650KN With Pump Transmission Line Stringing Tool

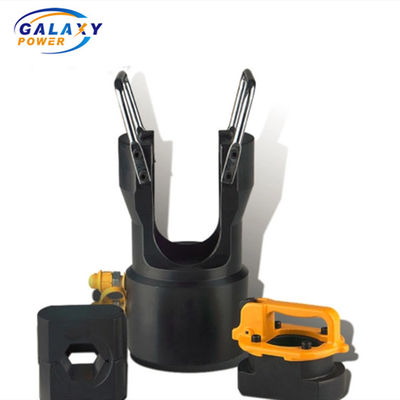

Compression 650KN Transmission Line Stringing Tool
Hydraulic Compressor Machine is used for conductor jointing on overhead transmisson line.
The set include Hydraulic compressor, Motorised hydraulic pump, and die sets according to different joint of conductor.
Compression 650KN Transmission Line Stringing Tool Quick details:
|
1. Transmission Line Stringing Equipment Accessories & Tools 7. GALAXY Brand |
Compression 650KN Transmission Line Stringing Tool Specification:
| For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump. | |||||
| Model | Max compression force (kN) | Rated pressure (kN) | Conductor size (mm) | Max stroke (mm) | Weight (kg) |
| QY-35 | 350 | 70 | ≤240 | 25 | 12 |
| QY-65 | 650 | 94 | ≤500 | 25 | 25 |
| QY-125 | 1250 | 94 | ≤720 | 25 | 40 |
| QY-200 | 2000 | 94 | ≤1440 | 25 | 85 |
| For Die | ||||
| Model | Compressor model | Aluminum Dies | Steel Dies | Copper Dies |
| QYD-35 | QY-35 | 16/18/20/22/24/26/30/32/34/36 | 16~500mm2 | |
| QYD-65 | QY-65 | 26/28/30/32/34/36/38/40/45/50 | 12/14/16/18/20/22/24/26 | 16~800mm2 |
| QYD-125 | QY-125 | 26/28/30/32/34/36/38/40/45/50 /52/55/60 |
12/14/16/18/20/22/24/26 | 16~800mm2 |
| QYD-200 | QY-200 | 26/28/30/32/34/36/38/40/45/50 /52/55/60/65/70/75/80 |
12/14/16/18/20/22/24/26 /28/30/32 |
16~800mm2 |
| For Gasoline pump | ||||||
| Model | Max compression force | Rated pressure | Flow | Gasoline volume | Power | Weight |
| YB-100 | 100Mpa | 80kN | 1.6L/min | 8L | 4hp |
83kg |
