Product Details:
|
| Max Intermittent Tension: | 45KN | Max Continuous Tension: | 40KN |
|---|---|---|---|
| Engine: | Diesel Cummins | Cooling System: | Water |
| Electrical System: | 24V | Max Conductor Diameter: | 40mm |
| Machine: | 4Ton Cable Tensioner Stringing Equipment | Useage: | Hydraulic Tensioner And Puller Machine |
| High Light: | glass disc insulator,high voltage glass insulators |
||

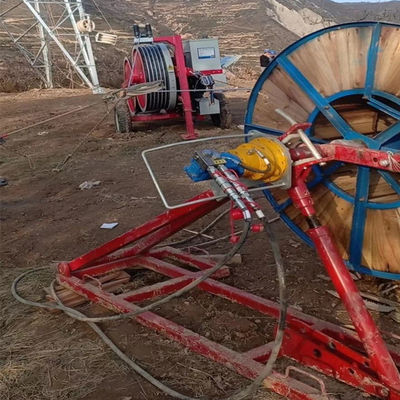

Overhead Line 4Ton Diesel Hydraulic Cable Tensioner Stringing Equipment
4Ton Cable Tensioner Stringing Equipment Description:
4Ton Cable Tensioner Stringing Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS optic fiber cable stringing in line stringing operation.
4Ton Cable Tensioner Stringing Equipment Performance:
| Maximum intermittent tension | 45KN |
| Maximum sustained tension | 40KN |
| Correspending speed | 2.5km/h |
| Maximum pay-off speed | 5km/h |
| Corresponding tension | 20KN |
| Maximum back-traping force | 35KN |
4Ton Cable Tensioner Stringing Equipment Engine:
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electric system | 24V |
4Ton Cable Tensioner Stringing Equipment Characteristics:
| Bull-wheel diameter | 1300mm |
| Max conductor diameter | 40mm |
| Groove number | 5 |
| Total weight | 2300kg |
| Overall dimension | 3520×2000×1710mm |
4Ton Cable Tensioner Stringing Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Remarks:
There are three important steps for selection of hydraulic conductor tensioner:
First, it is important to know the diameter or model of biggest conductor in transmission line project,
because the weight of conductor can be used to calculate the tension force on conductor.
Second, how many conductors in one phase of transmission line? Is it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in one stringing section? How many towers
are there is one tension section?
1x40KN Transmission Line Equipment Description:
4 Ton Hydraulic Cable Tensioner is used for single conductor or OPGW stringing on overhead transmisson line.
It is equipped with water cooled Cummins diesel engine and German Rexroth hydraulic pump,
Main motor,Hydraulic meter,Operating handle
1x40KN Transmission Line Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS optic fiber cable stringing in line stringing operation.
1x40KN Transmission Line Equipment Performance:
| Maximum intermittent tension | 45KN |
| Maximum sustained tension | 40KN |
| Correspending speed | 2.5km/h |
| Maximum pay-off speed | 5km/h |
| Corresponding tension | 20KN |
| Maximum back-traping force | 35KN |
1x40KN Transmission Line Equipment Engine:
| Diesel | 77kw(103hp) |
| Cooling system | water |
| Electric system | 24V |
1x40KN Transmission Line Equipment Characteristics:
| Bull-wheel diameter | 1300mm |
| Max conductor diameter | 40mm |
| Groove number | 5 |
| Total weight | 2300kg |
| Overall dimension | 3520×2000×1710mm |
1x40KN Transmission Line Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
Remarks:
There are three important steps for selection of hydraulic conductor tensioner:
First, it is important to know the diameter or model of biggest conductor in transmission line project,
because the weight of conductor can be used to calculate the tension force on conductor.
Second, how many conductors in one phase of transmission line? Is it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in one stringing section? How many towers
are there is one tension section?
