Product Details:
|
| Type: | Hydraulic Puller | Max Intermittent Pull: | 220kN |
|---|---|---|---|
| Speed At Max Pull: | 2.5km/h | Max Diameter Of Rope Reel: | 1600mm |
| Max Diameter Of Coupling: | 100mm | Overall Dimension: | 5300×2360×2750mm |
| High Light: | transmission line stringing tools,cable pulling tools equipment |
||

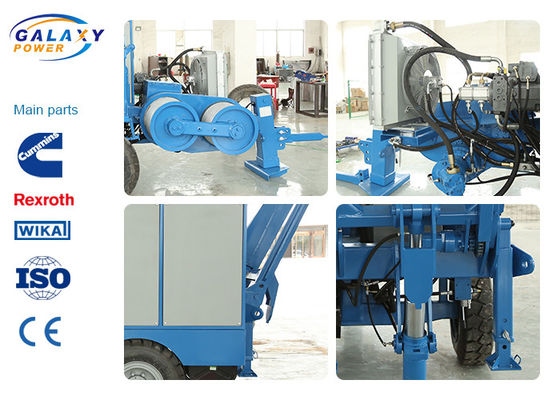

GS220 Stringing Equipment Overhead Transmission Hydraulic 220KN Transmission Puller
Hydraulic Puller GS220 allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands.
The machine can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Quick Detail
Performance parameter
| Model | GS40 | GS60 | GS90 | GS120 | GS150 | GS180 | GS220 | GS280 | GS380 | |
| Max intermittent pull | KN | 40 | 60 | 90 | 120 | 150 | 180 | 220 | 280 | 380 |
| Max continuous pull | KN | 30 | 50 | 80 | 100 | 120 | 150 | 180 | 250 | 350 |
| Speed at max pull | km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max speed | km/h | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Pull at max speed | KN | 20 | 25 | 40 | 50 | 60 | 75 | 90 | 120 | 170 |
| Diese | kw(hp) | 77(103) | 77(103) | 118(158) | 129(173) | 129(173) | 239(320) | 239(320) | 298(400) | 440(590) |
| Cooling system | Water | Water | Water | Water | Water | Water | Water | Water | Water | |
| Electrical system | V | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Bull-wheel diamete | mm | 400 | 450 | 540 | 600 | 600 | 700 | 760 | 960 | 960 |
| Groove number | 7 | 7 | 8 | 10 | 10 | 10 | 10 | 11 | 11 | |
| Max rope diameter | mm | 16 | 18 | 21 | 24 | 24 | 27 | 30 | 38 | 38 |
| Max diameter of rope reel | mm | 1200 | 1400 | 1400 | 1400 | 1600 | 1400 | 1600 | 1600 | 1900 |
| Total weight | kg | 3000 | 3500 | 4680 | 4800 | 5500 | 6800 | 6800 | 12600 | 13600 |
| Main Configuration | |
| Engine | Cummins |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Main moter speed reducer | German Rexroth |
| Main pump | German Rexroth |
| Tail bracket hoisting motor | American Eton |
| Configuration | |
| Hydraulic front stabilizer | |
| Hydraulic oil cooling system | |
| Grounding connection point | |
| Control instruments for hydraulic systems and diesel engines | |
| Hydraulic dynamometer with set-point and automatic control of maximum pull | |
| On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600 | |
| Additional Devices | |
| Digital speed and meter counter (extra charge) | |
| Extra shaft | |
| Swivel guide rope roller | |
| Lighting system for the trailer | |
| Hydraulic rope clamp for reel change | |
| Trailer for towing at max speed of 30 km/h | |
