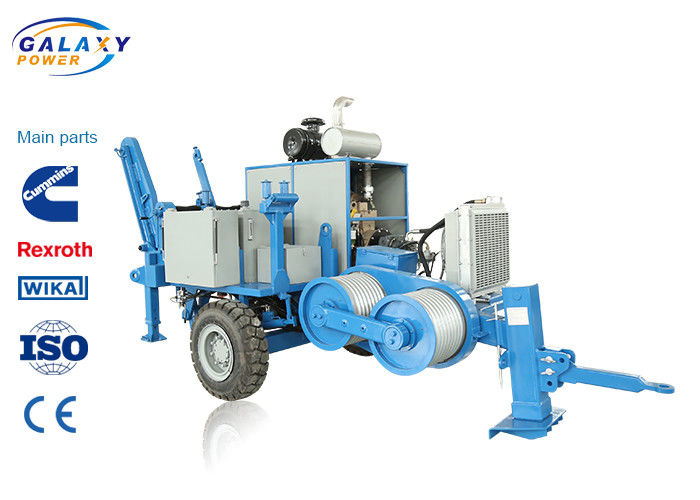

380KN Max Stringing Equipment Overhead Transmission Hydraulic Puller Machine

380KN Max Stringing Equipment Overhead Transmission Hydraulic Puller Machine
380KN Max Stringing Equipment Overhead Transmission Hydraulic Puller Machine

Large Image :  380KN Max Stringing Equipment Overhead Transmission Hydraulic Puller Machine

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GS380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month

380KN Max Stringing Equipment Overhead Transmission Hydraulic Puller Machine

Description
Type: Hydraulic Puller Max Intermittent Pull: 380kN
Speed At Max Pull: 2.5km/h Overall Dimension: 6000×2600×2800mm
Max Diameter Of Coupling: 100mm Total Weight: 13600kg
High Light:

transmission line stringing tools

,

cable pulling tools equipment

Stringing Equipment Max Intermittent Pull 380KN Overhead Transmission Hydraulic Puller Machine

  1.  Model: GS280
  2.  Overall dimension: 5800×2500×2850mm
  3.  Closed hydraulic circuit for step less speed variation in both rotating directions.
  4.  Hydraulic Puller GS380 is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Performance parameter

Model   GS40 GS60 GS90 GS120 GS150 GS180 GS220 GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180 220 280 380
Max continuous pull KN 30 50 80 100 120 150 180 250 350
Speed at max pull km/h 2.5 2.5 3 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diese kw(hp) 77(103) 77(103) 118(158) 119(173) 129(173) 239(320) 239(320) 298(400) 440(590)
Cooling system   Water Water Water Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 500 600 700 760 960 960
Groove number   7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 27 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800 12600 13600
