Product Details:
|
| Max Intermittent Tension: | 2×55/1×110KN | Maximum Sustained Tension: | 2×50/1×100KN |
|---|---|---|---|
| Bull-wheel Diameter: | 1300/1500mm | Overall Dimension: | 4700x2300x2700mm |
| Max Reverse Pulling Speed: | 5km/h | Type: | Hydraulic Tensioner |
| High Light: | cable pulling equipment,genset diesel generator |
||

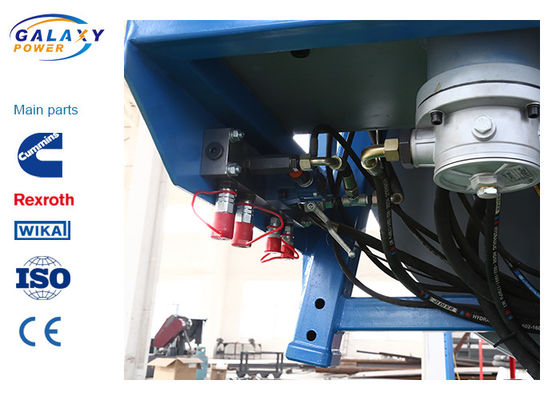

Hydraulic Tensioner For Transmission Line Equipment Pulling Type 2x50KN Cable Tensioner Machine
Hydraulic Tensioner GL2x50 allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains. And it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains.
Configuration
Additional Devices
Performance parameter
| Model | Maximum intermittent tension | Maximum sustained tension | Correspending speed | Maximum pay-off speed | Corresponding tension | Maximum back-traping force | Maximum back-traping speed |
| KN | KN | km/h | km/h | KN | KN | km/h | |
| GL1×20 | 20 | 5 | |||||
| GL1×40 | 45 | 40 | 2.5 | 5 | 20 | 35 | 5 |
| GL1×50 | 50 | 40 | 2.5 | 5 | 25 | 45 | 2.4 |
| GL2×35 | 2×40/1×80 | 2×35/1×70 | 2.5 | 5 | 2×20/1×40 | 2×20/1×40 | 5 |
| GL2×40 | 2×45/1×90 | 2×40/1×80 | 2.5 | 5 | 2×20/1×40 | 2×35/1×70 | 5 |
| GL2×50 | 2×55/1×110 | 2×50/1×100 | 2.5 | 5 | 2×25/1×50 | 2x45/1x90 | 5 |
| GL2×70 | 2×70 | 2×65 | 2.5 | 5 | 2×25 | 2×60/1×120 | 5 |
| Structure parameter | |
| Bottom diameter of tension wheel groove | 1300mm |
| Trial traverse diameter | 40mm |
| Slot number | 2×5 |
| Total weight | 4500kg |
| Boundary dimension | 4300×2250×2700mm |
| Engine | |
| Diesel | 77kw(103hp) |
| Cooling system | Water |
| Electric system | 24V |
| Main configuration instructions | |
| Engine | Cummins |
| Hydraulic pump | GermanRexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Hydraulic meter | German |
| Speed reducer | German Rexroth |
| Operating handle | German Rexroth |
