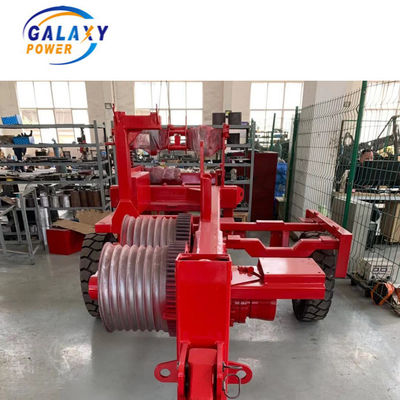

138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment

138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment
138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment
138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment 138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment 138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment

Large Image :  138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment

Product Details:
Place of Origin: China (Mainland)
Brand Name: GALAXY
Certification: ISO,CE
Model Number: GS40 / SA-QY40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment

Description
Key Words: Transmission Line Stringing Equipment ,Overhead Line Stringing Equipment ,Cable Stringing Equipment Max Intermittent Pull: 4Ton
Max Continuous Pull: 3Ton Speed At Max Pull: 2.5km/h
Max Speed: 5km/h Pull At Max Speed: 20kN
Diesel: 77kw(103hp) Bull-wheel Diameter: 400mm
Groove Number: 7 Useage: Match With Hydraulic Tensioner Machine
High Light:

glass disc insulator

,

glass power line insulators

138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment




Transmission Line Stringing Equipment

 4 ton hydraulic puller is used for pulling single pilot wire rope for stringing single conductor,
or OPGW cable in overhead transmission line.

 4 ton hydraulic puller is used for pulling single pilot wire rope for stringing single conductor, earth wire
or OPGW cable in overhead transmission line construction. It is equipped with water cooled diesel
engine system, hydraulic pump system, and automatic winding system for pilot wire rope





138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment 0




Transmission Line Stringing Equipment Technicial Parameter :

Maximum linepull (kN) 40
Continuous linepull (kN) 30
Maximum linespeed (km/h) 5
Bullwheel bottom of groove diameter(mm) Φ400
Bullwheel grooves number 7
Maximum suitable steelrope diameter (mm) Φ16
Maximum through connector diameter (mm) Φ50
Engine power Diesel
Dimensions (mm) 3800×2020×2340mm
Weight (kg) 2500




Transmission Line Stringing Equipment Main Configuration

Engine Cummins
Main pump German Rexroth
Main motor speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German WIKA
Operating handle German Rexroth




Transmission Line Stringing Equipment Configuration

·Hydraulic dynamometer with set-point and automatic control of maximum pull
·Hydraulic oil cooling system
·Control instruments for hydraulic system and diesel engine
·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
·Hydraulic front stabilizer
·Grounding connection point



Overhead line Stringing Equipment Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided
with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced
to "0") by automatically adjusting the operation speed according to the friction and unexpected loads
which may occur.



Overhead Line Stringing Equipment Additional Devices

·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter (extra charge)



138KV OPGW Cable Puller 4Ton Transmission Line Stringing Equipment 1
