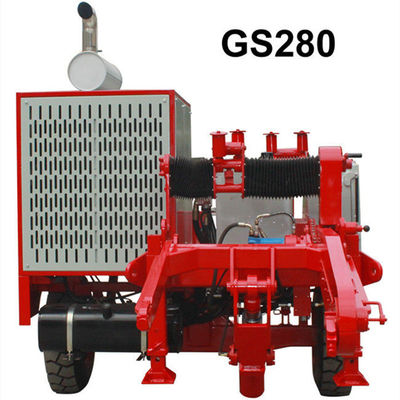

Quad conductor Max Puller 280KN OPGW / ADSS Cable Stringing Equipment
280KN Cable Stringing Equipment Description
Our GS280KN Hydraulic Cable Stringing Winch is used for overhead transmission line four or six conductors stringing.
The Overhead Stringing equipment is equipped with Cummins Engine, Rexroth hydraulic pump and hydraulic motor,
Rexroth reducer,AKG radiator etc. It is usally used in 500KV - 750 KV transmission line stringing operation.
280KN Cable Stringing Equipment Performance Parameter
Maximum tractive force | 280KN |
Maximum sustained traction | 250KN |
Correspending speed | 2.5km/h |
Maximum sustained tractive speed | 5km/h |
Corresponding tension | 120KN |
280KN Cable Stringing Equipment Structure Parameter
Diameter of traction wheel | 960mm |
Slot number | 11 |
Maximum wire rope diameter | 38mm |
Allow for maximum connector diameter | 1600mm |
Total weight | 12800kg |
Dimensions of the whole machine | 5800×2500×2850mm |
280KN Cable Stringing Equipment Main Configuration Instructions
Engine | Cummins |
Main variable pump | German Rexroth |
The main motor, reduction gears | German Rexroth |
Tailstock motor | America Eton |
Hydraulic instrument | German |
280KN Transmission Overhead Line Equipment Configuration:
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point
280KN Transmission Overhead Line Equipment Hydraulic Transmission:
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with
a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by
automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
280KN Transmission Overhead Line Equipment Additional Devices :
Lighting system for the trailer
Air brake system for the trailer
Hydraulic rope clamp for reel change(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter
