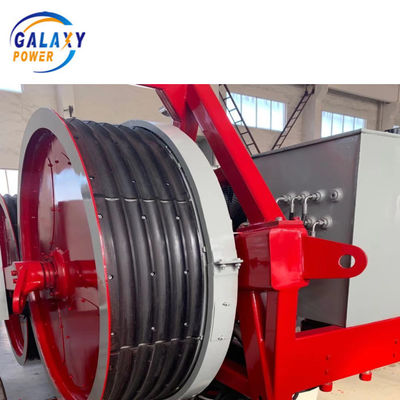

2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller

2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller
large.img.alt
2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller 2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller 2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller 2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller

Large Image :  2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller

Product Details:
Place of Origin: China (Mainland)
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GL35TP
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller

Description
Key Words: Transmission Line Stringing Equipment ,Overhead Line Stringing Equipment ,tensioner Stringing Equipment Max Tension: 35KN
Max Speed: 4.5km/h Diesel: 48kw(64hp)
Bull-wheel Diameter: 1200mm Max Rope Diameter: 13mm
Max Conductor Diameter: 34mm Max Pull: 35KN
Speed At Max Pull: 2.6km/h Pull At Max Speed: 20KN
High Light:

2.6km/h Hydraulic Stringing Equipment

,

35KN cable pulling machine

,

Teniosner Puller Stringing Equipment



Stringing Overhead Line 35KN Hydraulic Cable Teniosner Puller Machine







Hydraulic Cable Teniosner Puller Machine:



The single beam trailer chassis is adopted, and the lifting points are set up in advance for anchoring and

temporary anchoring, which is light, compact, complete, convenient for loading and unloading, transportation

and transshipment.

Using hydraulic control tension, equipped with hydraulic crushing, high-performance radiator,

hydraulic power device, precision filter device and other high-quality parts, to support safe, high-quality,

efficient performance.



Hydraulic power units provide lead traction in both positive and negative directions.





2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller 0



Hydraulic Cable Teniosner Puller Machine  Performance parameter :

Puller
Max pull 35KN
Speed at max pull 2.6km/h
Max speed 4.5km/h
Pull at max speed 20KN
Tensioner
Max tension 35KN
Max speed 4.5km/h
Engine
Diesel 48kw(64hp)
Cooling system Water
Electrical system 24V
Characteristics
Bull-wheel diameter 1200mm
Max rope diameter 13mm
Max conductor diameter 34mm
Total weight 2200kg
Overall dimension 4000*2000*2300mm
Main configuration
Engine Cummins
Hydraulic pump German Rexroth
Main motor German Rexroth
Speed reducer German Rexroth
Hydraulic meter German
Operating handle German Rexroth





Hydraulic Cable Teniosner Puller Machine  Configuration

  • Hydraulic dynamometers with set-point and automatic control of maximum pull
  • Grounding connection point
  • Hydraulic oil cooling system
  • Rigid axles for towing at max speed of 30km/h with mechanical parking brake
  • Digital meter counters
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic front stabilizer
  • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  • Negative self-acting hydraulic brakes

Hydraulic Cable Teniosner Puller Machine  Additional Devices

  • Lighting system for the trailer
  • Electronic pull and speed recorder
  • Hydraulic conductor clamps for drum change operations (extra charge)
  • Hydraulic brake system for the trailer (extra charge)



2.6km/H Hydraulic Stringing Equipment 35KN Cable Pulling Machine Teniosner Puller 1
