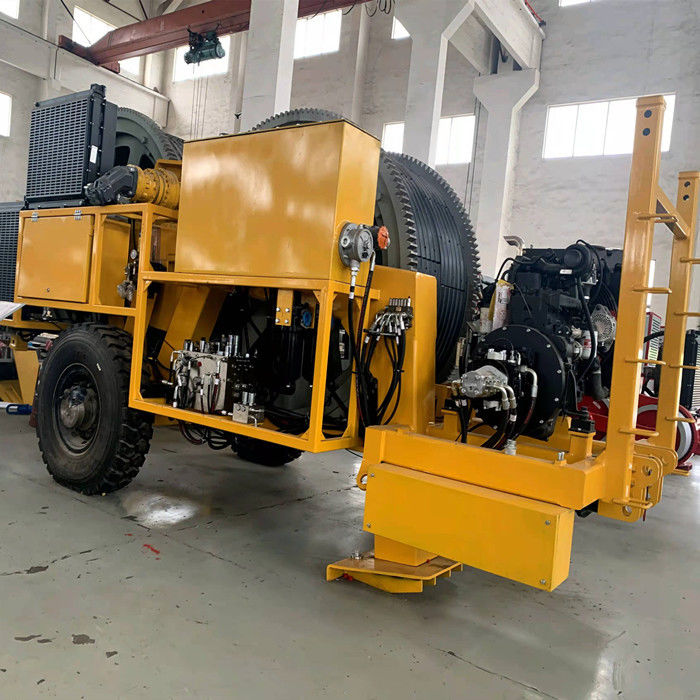

500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine

500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine
500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine
500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine 500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine 500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine

Large Image :  500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine

Product Details:
Place of Origin: China (Mainland)
Brand Name: Galaxy
Certification: ISO9001
Model Number: GL2x70
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine

Description
Key Word: Transmission Line Stringing Equipment ,Overhead Line Stringing Equipment,Cable Puller Stringing Equipment Max Intermittent Tension: 2x70/1x140kN
Max Continuous Tension: 2x65/1x130kN Max Reverse Pulling Force: 2x60/1x120kN
Max Reverse Pulling Speed: 5km/h Diesel: 77kw(103hp)
Cooling System: Water Electrical System: 24V
Bull-wheel Diameter: 1700mm Useage: Transmission Overhead Lines Construction



500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine







2x70KN Hydraulic Cable Tensioner Stringing Machine



Hydraulic Tensioner GL2x70(SA-ZY-2x70) is used for stringing 2 conductors on super high

overhead transmission line. It is used for big conductor stringing diameter up to 40mm.

It is suitable to string two bundled conductors or single conductor in overhead transmission line.





2x70KN Hydraulic Cable Tensioner Stringing Machine  Technicial Parameter



Item Product model GL 2x70 / 1x140
Performance parameters Rated tension 2×70 or 1×140kN
  Maximum tension 2×65 or 1×130KN
  Rated stringing speed 2.5km/h
  Maximum stringing speed 5km/h
  Corresponding tension force 2×25 / 1×50kN
  Maximum reverse traction force 2x60/1x120 kN
  Maximum sustained traction speed 5km/h
Structural parameters Stringing drum Bottom diameter 1700mm
    Number of slots 2x6
    40mm
  Dimensions 4700×2300×2700mm
  Weight 7500kgs
Main configurations Engine CUMMINS
  Electrical system 24V
  Hydraulic pump REXROTH
  Hydraulic motor REXROTH
  Reducer REXROTH
  Hydraulic instrument WIKA







500KV Twin Conductor GL2x70KN Hydraulic Cable Tensioner Stringing Machine 0





2x70KN Hydraulic Cable Tensioner Stringing Machine Configuration

·2 negative self-acting hydraulic brakes ·2 hydraulic dynamometers
·Hydraulic oil cooling system
·2 digital meter counters
·2 digital speed meters
·Control instruments for hydraulic system and diesel engine
·Rigid axle for towing at max speed of 30km/h with mechanical parking brake
·Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
·Grounding connection point


2x70 Overhead Line Stringing Equipment Hydraulic Transmission

·The 2x70 overhead line stringing machine can realize step less speed
·The machine is provided with tension presetting system



2x70 Overhead Line Stringing Equipment  Additional Devices


·Lighting system for the trailer

·2 hydraulic rope/conductor clamp (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Digital speed and meter counter

·Air brake system for the trailer
