Product Details:
|
Diesel: | 77kw(103hp) | Max Intermittent Pull: | 60kN |
---|---|---|---|
Speed At Max Pull: | 2.5km/h | Cooling System: | Water |
Bull-wheel Diameter: | 450mm | Max Rope Diameter: | 18mm |
Total Weight: | 3500kg | Overall Dimension: | 3800*2100*2300mm |
Highlight: | hydraulic cable puller,overhead line stringing equipment |

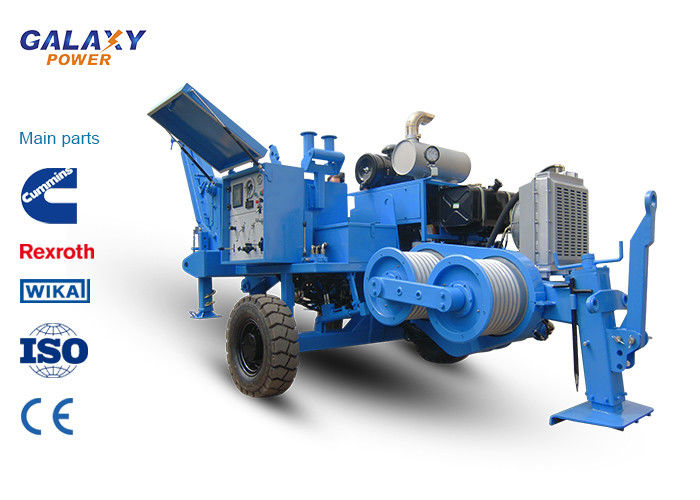

Max intermittent pull 60kN Pulling Equipment Diesel 77kW(103hp) Hydraulic Puller
This machine is provided with a pull pro-setting system that maintains the pre-set pulling value by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Model |
Max intermittent pull kN |
Max continuous pull kN |
Speed at max pull km/h |
Max speed km/h |
Pull at max speed kN |
Bull-wheel diameter mm |
Groove number |
Max rope diameter mm |
Max diameter of rope reel mm |
Total weight kg |
Overall diaension mm |
GS40 | 40 | 30 | 2.5 | 5 | 20 | 400 | 7 | 16 | 1200 | 3000 |
3600*2600 *2200 |
GS60 | 60 | 50 | 2.5 | 5 | 25 | 450 | 7 | 18 | 1400 | 3500 |
3800*2100 *2300 |
GS90 | 90 | 80 | 2.5 | 5 | 40 | 540 | 8 | 21 | 1400 | 4680 |
4000*2200 *2100 |
GS120 | 120 | 100 | 2.5 | 5 | 50 | 600 | 10 | 24 | 1400 | 4800 |
4000*2300 *2300 |
GS150 | 150 | 120 | 2.5 | 5 | 60 | 600 | 10 | 24 | 1600 | 5500 |
4300*2300 *2400 |
GS180 | 180 | 150 | 2.5 | 5 | 75 | 700 | 10 | 27 | 1400 | 6800 |
4300*2360 *2380 |
GS220 | 220 | 180 | 2.5 | 5 | 90 | 760 | 10 | 30 | 1600 | 6800 |
5300*2360 *2750 |
GS280 | 280 | 250 | 2.5 | 5 | 120 | 960 | 11 | 38 | 1600 | 12800 |
5800*2500 *2850 |
GS380 | 380 | 350 | 2.5 | 5 | 170 | 960 | 11 | 38 | 1900 | 13600 |
6000*2600 *2800 |
Model |
Diesel kw(hp) |
Cooling system |
Electrical system V |
Engine | Main pump | Main motor speed reducer | Tail bracket hoisting motor | Hydraulic meter | Operating handle |
GS40 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS60 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS90 | 118(158) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS120 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS150 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS180 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS220 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS280 | 298(400) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS380 | 440(590) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
Configuration | Grounding connection point |
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 | |
Hydraulic front stabilizer | |
Hydraulic dynamometer with set-point and automatic control of maximum pull | |
Control instruments for hydraulic system and diesel engine | |
Hydraulic oil cooling system | |
Additional Devices | Lighting system for the trailer |
Hydraulic rope clamp for reel change | |
Extra shaft | |
Trailer for towing at max speed of 30 km/h | |
Swivel guide rope roller | |
Digital speed and meter counter (extra charge) |
