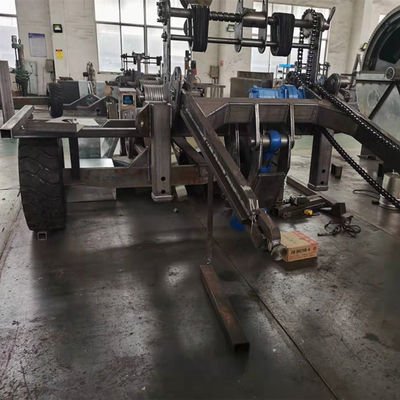

24V Electric Diesel 77kw 7 Grooves 4T Cable Puller Stringing Equipment

GS40 (SA-QY-) 4 ton hydraulic cable puller stringing equipment is used for pulling single pilot wire rope for stringing single conductor, earth wire or OPGW cable in overhead transmission line construction. It is equipped with water cooled diesel engine system, hydraulic pump system, and automatic winding system for pilot wire rope.

4T Cable Puller Stringing Equipment Technicial Parameter :

4T Cable Puller Stringing Equipment  Main Configuration

·Hydraulic dynamometer with set-point and automatic control of maximum pull
·Hydraulic oil cooling system
·Control instruments for hydraulic system and diesel engine
·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
·Hydraulic front stabilizer
·Grounding connection point

4T Hydraulic Puller Overhead Line Stringing Equipment Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided
with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced
to "0") by automatically adjusting the operation speed according to the friction and unexpected loads
which may occur.





4T Hydraulic Puller Overhead Line Stringing Equipment Additional Devices

·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter (extra charge)
