Product Details:
|
| Max Intermittent Pull: | 150kN | Diesel: | 129kw(173hp) |
|---|---|---|---|
| Speed At Max Pull: | 2.5km/h | Overall Dimension: | 4300×2300×2400mm |
| Engine: | Cummins | Groove Number: | 10 |
| Type: | Hydraulic Pulley With Cummins Engine | Electric System: | 24V |
| High Light: | tension stringing equipment,genset diesel generator |
||

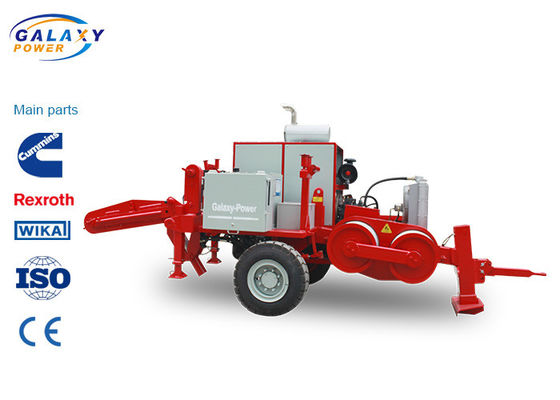

Max Intermittent Pull 150kN 129kw(173hp) Hydraulic Pulley With Cummins Engine
The machine can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Beside, it allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands.
| Model |
Max intermittent pull |
Max continuous pull |
Speed at max pull |
Max speed |
Pull at max speed |
Bull-wheel diameter |
Groove number |
Max rope diameter |
Max diameter of rope reel |
Total weight |
Overall diaension |
| kN | kN | km/h | km/h | kN | mm | mm | mm | kg | mm | ||
| GS40 | 40 | 30 | 2.5 | 5 | 20 | 400 | 7 | 16 | 1200 | 3000 |
3600*2600 *2200 |
| GS60 | 60 | 50 | 2.5 | 5 | 25 | 450 | 7 | 18 | 1400 | 3500 |
3800*2100 *2300 |
| GS90 | 90 | 80 | 2.5 | 5 | 40 | 540 | 8 | 21 | 1400 | 4680 |
4000*2200 *2100 |
| GS120 | 120 | 100 | 2.5 | 5 | 50 | 600 | 10 | 24 | 1400 | 4800 |
4000*2300 *2300 |
| GS150 | 150 | 120 | 2.5 | 5 | 60 | 600 | 10 | 24 | 1600 | 5500 |
4300*2300 *2400 |
| GS180 | 180 | 150 | 2.5 | 5 | 75 | 700 | 10 | 27 | 1400 | 6800 |
4300*2360 *2380 |
| GS220 | 220 | 180 | 2.5 | 5 | 90 | 760 | 10 | 30 | 1600 | 6800 |
5300*2360 *2750 |
| GS280 | 280 | 250 | 2.5 | 5 | 120 | 960 | 11 | 38 | 1600 | 12800 |
5800*2500 *2850 |
| GS380 | 380 | 350 | 2.5 | 5 | 170 | 960 | 11 | 38 | 1900 | 13600 |
6000*2600 *2800 |
| Model |
Diesel (kw(hp)) |
Cooling system |
Electrical system (V) |
Engine | Main pump | Main motor speed reducer | Tail bracket hoisting motor | Hydraulic meter | Operating handle |
| GS40 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS60 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS90 | 118(158) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS120 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS150 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS180 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS220 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS280 | 298(400) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
| GS380 | 440(590) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
Configuration
1. Hydraulic front stabilizer
2. Grounding connection point
3. Hydraulic oil cooling system
