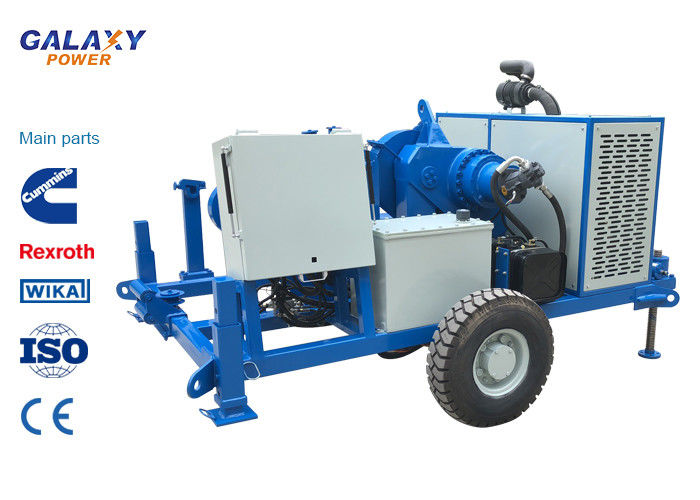

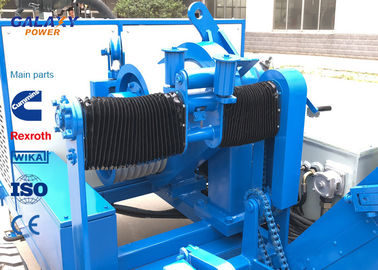

GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN

GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN
GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN

Large Image :  GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001
Model Number: GP100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 200 sets per month
Contact Now

GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN

Description
Max Pull Force: 100kN Diesel: Yanmar Japan 49.2hp/36kw
Engine: Yanmar Japan Overall Dimension (length*width*height): 4000*2200*1800mm
Cooling System: Water Hydraulic Valve: Sun USA
High Light:

cable pulling tools equipment

,

pulling machine equipment

Cable Pulling Equipment GP100 Yanmar Japan Puller Max Pull Force: 100kN



Model   GP100
Max pull force   100kN
Continuous pull effort   80kN
Max speed at Continuous pull   17m/min
Max speed   83m/min
Pull at max speed   15kN
Capstans   350x650mm
Maximum cable diameter   80 mm
Total weight   3350kg

Overall dimension

(length*width*height)

   4000*2200*1800mm
Diesel   Yanmar Japan 49.2hp/36kw
Cooling system   Water
Electrical system   12V
Engine   Yanmar Japan
Hydraulic motor   Rexroth German
Hydraulic pump   Danfoss
Hydraulic meter   German
Operating handle   Bondioli & Pavesi Italy
Hydraulic valve   Sun USA



Configuration

  • Control panel with instruments for hydraulic system and engine.
  • Hydraulic emergency brake operates automatically at the center of the instruction bar or in the case of hydraulic failure (not suitable for lifting)
  • Large channel steel capstan with anti-skid device
  • Hydraulic oil cooling system
  • In the case of over pull, the preset for maximum tension can stop the puller
  • The hydrostatic loop, which allows the puller to continue to change speed in two rotational modes, can operate only one command

Additional Devices

  • Lighting system for the trailer
  • Rear tension roller with hydraulic drive
  • Chassis, with damping shaft, tires, traction lever, Trailer for towing at max speed of 30 km/h
  • Digital speed and meter counter (extra charge)


GP100 Yanmar Japan Puller Cable Pulling Equipment Max Pull Force 100kN 0
