Product Details:
|
Max Intermittent Pull: | 40kN | Diesel: | 77kw(103hp) |
---|---|---|---|
Speed At Max Pull: | 2.5km/h | Bull-wheel Diameter: | 400mm |
Overall Dimension: | 3600×2600×2200mm | Engine: | Cummins |
Groove Number: | 7 | Type: | Hydraulic Pulley With Cummins Engine |
Highlight: | cable pulling tools equipment,pulling machine equipment |

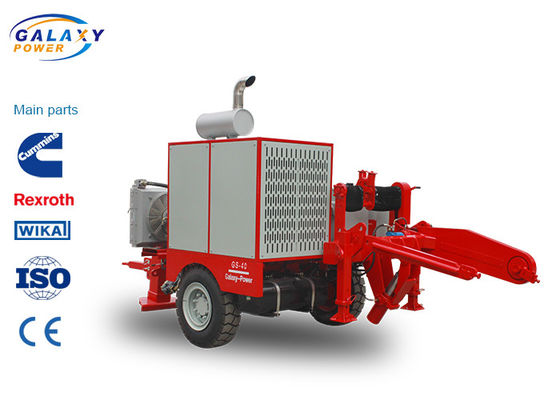

Equipment GS40 77kw(103hp) Hydraulic Pulley With Cummins Engine
GS40 hydraulic pulley allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands.
Besides, this machine can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Model | Max intermittent pull | Max continuous pull | Speed at max pull | Max speed | Pull at max speed | Bull-wheel diameter | Groove number | Max rope diameter | Max diameter of rope reel | Total weight | Overall diaension |
kN | kN | km/h | km/h | kN | mm | mm | mm | kg | mm | ||
GS40 | 40 | 30 | 2.5 | 5 | 20 | 400 | 7 | 16 | 1200 | 3000 |
3600*2600 *2200 |
GS60 | 60 | 50 | 2.5 | 5 | 25 | 450 | 7 | 18 | 1400 | 3500 |
3800*2100 *2300 |
GS90 | 90 | 80 | 2.5 | 5 | 40 | 540 | 8 | 21 | 1400 | 4680 |
4000*2200 *2100 |
GS120 | 120 | 100 | 2.5 | 5 | 50 | 600 | 10 | 24 | 1400 | 4800 |
4000*2300 *2300 |
GS150 | 150 | 120 | 2.5 | 5 | 60 | 600 | 10 | 24 | 1600 | 5500 |
4300*2300 *2400 |
GS180 | 180 | 150 | 2.5 | 5 | 75 | 700 | 10 | 27 | 1400 | 6800 |
4300*2360 *2380 |
GS220 | 220 | 180 | 2.5 | 5 | 90 | 760 | 10 | 30 | 1600 | 6800 |
5300*2360 *2750 |
GS280 | 280 | 250 | 2.5 | 5 | 120 | 960 | 11 | 38 | 1600 | 12800 |
5800*2500 *2850 |
GS380 | 380 | 350 | 2.5 | 5 | 170 | 960 | 11 | 38 | 1900 | 13600 |
6000*2600 *2800 |
Model |
Diesel (kw(hp)) |
Cooling system |
Electrical system (V) |
Engine | Main pump | Main motor speed reducer | Tail bracket hoisting motor | Hydraulic meter | Operating handle |
GS40 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS60 | 77(103) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS90 | 118(158) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS120 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS150 | 129(173) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS180 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS220 | 239(320) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS280 | 298(400) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
GS380 | 440(590) | Water | 24 | Cummins | German Rexroth | German Rexroth | American Eton | German | German Rexroth |
