77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment

77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment
77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment
77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment 77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment 77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment 77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment

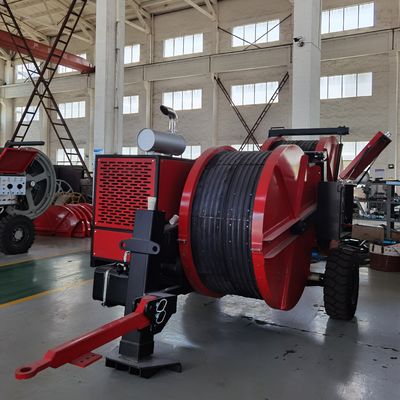

Large Image :  77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001;CE
Model Number: GL2X40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month

77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment

Description
Type: Hydraulic Tensioner Maximum Intermittent Tension: 2X45/1X90KN
Maximum Sustained Tension: 2X40/1X80KN Trial Traverse Diameter: 40mm
Diesel: 77kw(103hp) Maximum Pay-off Speed: 5km/h
Total Weight: 6230kg Maximum Back-traping Force: 2X35/1X70KN
High Light:

cable pulling tools equipment

,

pulling machine equipment

77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment​



The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains.



Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Hydraulic front stabilizer
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Hydraulic Transmission

  • The machine can realize step less speed
  • The machine is provided with tension presetting system

Performance/Engine

Model

Max

intermittent tension

Max continuous tension Speed at max tension Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
  kN kN km/h km/h kN kN km/h kw(hp)   V
GL1X7.5   7.5   2.4
GL1X20   20   5
GL1X20II   20   4
GL1X20III   20 2.5 5 10 15

10kw

(3600rpm)

Air
GL1X30   30 2.5 5 15 20   12(16)   12
GL1X40 45 40 2.5 5 20 35   77(103) Water 24
GL1X50 50 40 2.5 5 25 45 2.4 77(103) Water 24
GL140IV 1x140 1x120 2.5 5 35 1x120 1.2 77(103) Water 24
GL2X35

2x40/

1x80

2x35/

1x70

2.5 5

2x20/

1x40

2x30/

1x60

5 77(103) Water 24
GL2X40

2x45/

1x90

2x40/

1x80

2.5 5

2x20/

1x40

2x35/

1x70

5 77(103) Water 24
GL2X50

2x55/

1x110

2x50/

1x100

2.5 5

2x25/

1x50

2x45/

1x90

5 77(103) Water 24
GL2X70

2x70/

1x140

2x65/

1x130

2.5 5

2x25/

1x50

2x60/

1x120

5 77(103) Water 24
GL2x70IV

2x70/

1x140

2x65/

1x130

2.5 5

2x25/

1x50

2x60/

1x120

5 77(103) Water 24
GL2X90

2x100/

1x200

2x90/

1x180

2.5 5

2x40/

1x80

2x80/

1x160

2

130kw

(2500r/min)

Water 24
GL4x50

4x50/

2x200

4x40/

2x80

2.5 5

4x20/

2x40

4x40/

2x80

1.25 77(103) Water 24



Characteristics

Model Bull-wheel diameter Max conductor diameter Max optical fiber cable diameter Groove width Groove number Total weight Overall damension
  mm mm mm mm   kg mm
GL1X7.5 1100 24 21 220 1 850 2300x1250x1620
GL1X20 1300 40 21 55 5 1920 4080x1930x2300
GL1X20II 800 23   45 5 950 2400x1500x1650
GL1X20III 800 22.5   55 5 1150 2500x1500x1700
GL1X30 1300 40 21 60 5 2064 3700x1950x2150
GL1X40 1300 40 21 55 5 3430 4000x2000x2300
GL1X50 1300/1500 55 21 68 6 2400 4000x1900x2300
GL140IV 1500 40     16 10000 5500x2280x2700
GL2X35 1300 40     2x5 4500 4300x2250x2700
GL2X40 1300/1500 40     2x5 6230 4300x2250x2700
GL2X50 1300/1500 40     2x5 6000 4700x2300x2700
GL2X70 1700 40     2x6 7500 4700x2300x2700
GL2x70IV 1500 40     2x8 10000 5500x2280x2700
GL2X90 1900 50     2x6 7500 5400x2300x2700
GL4x50 1500 40     4x5 13000 5900x2300x2700



Main Configuration

  • Engine: Cummins
  • Hydraulic pump: GermanRexroth/Dnish Danfoss
  • Main motor: German Rexroth/French Leduc
  • Speed reducer: German Rexrothn
  • Hydraulic meter: German
  • Operating handle: German Rexroth

Additional Devices

  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Digital speed and meter counter

77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment 0

77kW(103hp) Engine 2x40kN Hydraulic Tensioner Transmission Line Equipment 1



COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
