|Max Intermittent Pull:||120KN||Max Continuous Pull:||100KN|
|Overall Dimension:||4000*2300*2500mm||Max Speed:||5km/h|
|Pull At Max Speed:||50KN||Diesel:||129kw(173hp)|
|Bull-wheel Diameter:||1400mm||Total Weight:||4800|
cable pulling tools equipment,
pulling machine equipment

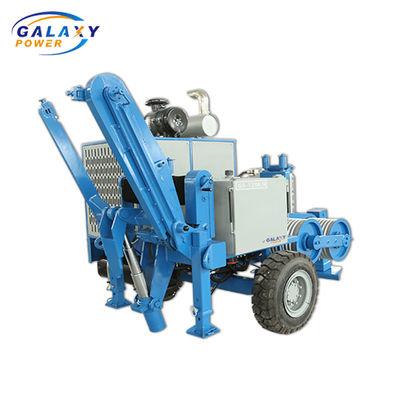

GS120 Stringing Equipment Max Intermittent Pull 120kN Hydraulic Power Puller Overhead Transmission Line Equipment
The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
|Max intermittent pull||KN||40||60||90||120||150||180||220||280||380|
|Max continuous pull||KN||30||50||80||100||120||150||180||250||350|
|Speed at max pull||km/h||2.5||2.5||2.5||2.5||2.5||2.5||2.5||2.5||2.5|
|Pull at max speed||KN||20||25||40||50||60||75||90||120||170|
|Max rope diameter||mm||16||18||21||24||24||27||30||38||38|
|Max diameter of rope reel||mm||1200||1400||1400||1400||1600||1400||1600||1600||1900|
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
