Product Details:
|
| Max Pull: | 2x45kN/1x90kN | Speed At Max Pull: | 2.4km/h |
|---|---|---|---|
| Bull-wheel Diameter: | 1500mm | Overall Dimension: | 4700*2300*2700mm |
| Pull At Max Speed: | 2x22KN/1x44KN | Diesel: | 118kw(158hp) |
| Max Tension: | 2x45kN/1x90kN | Total Weight: | 6200kg |
| High Light: | cable pulling tools equipment,pulling machine equipment |
||

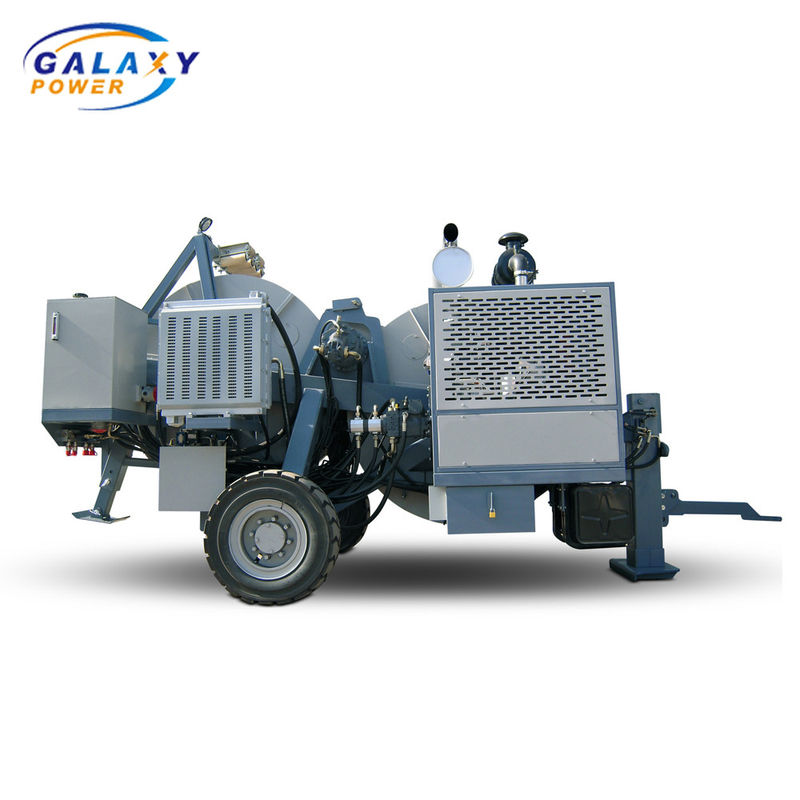

Transmission Line Stringing Equipment Max pull 2x45kN Hydraulic Puller-Tensioner Machine GL2X45TP
The machine is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof nylon sectors. The machine is completely electronically controlled.
Configuration
Hydraulic Transmission
2 Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
Additional Devices
| Model | GL25TP | GL35TP | GL45TP | GL90TP | GL140TP | GL2X45TP | GL2X70TP |
| Puller | |||||||
|
Max pull kN |
25 | 35 | 45 | 90 | 140 | 2x45/1x90 | 2x70/1x140 |
|
Speed at max pull km/h |
1.3 | 2.6 | 2.7 | 2.4 | 1.7 | 2.4 | 2 |
|
Max speed km/h |
4 | 4.5 | 5 | 5 | 4 | 5 | 4.5 |
|
Pull at max speed kN |
8 | 20 | 25 | 44 | 60 | 2x22/1x44 | 2x30/1x60 |
| Tensioner | |||||||
|
Max tension kN |
25 | 35 | 45 | 90 | 140 | 2x45/1x90 | 2x70/1x140 |
|
Max speed km/h |
5 | 4.5 | 5 | 5 | 4 | 5 | 4.5 |
| Engine | |||||||
|
Diesel kw(hp) |
48(64) | 48(64) | 63(85) | 118(158) | 129(173) | 118(158) | 129(173) |
| Cooling system | Water | ||||||
|
Electrical system V |
24 | ||||||
| Characteristics | |||||||
|
Bull-wheel diameter mm |
1500 | 1200 | 1500 | 1500 | 1500 | 1500 | 1700 |
|
Max rope diameter mm |
10 | 13 | 16 | 18 | 24 | 18 | 24 |
|
Max conductor diameter mm |
36 | 34 | 34 | 40 | 40 | 40 | 46 |
|
Total weight kg |
2300 | 2200 | 3000 | 4600 | 6800 | 6200 | 8000 |
|
Overall dimension mm |
3520*2000*2200 | 4000*2000*2300 | 4700*2200*2300 | 4700*2300*2700 | |||
| Main configuration | |||||||
| Engine | Cummins | ||||||
| Hydraulic pump | German Rexroth | ||||||
| Main motor | German Rexroth | ||||||
| Speed reducer | German Rexroth | ||||||
| Hydraulic meter | German | ||||||
| Operating handle | German Rexroth | ||||||
COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
