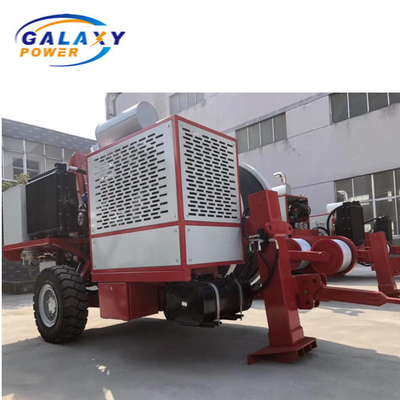

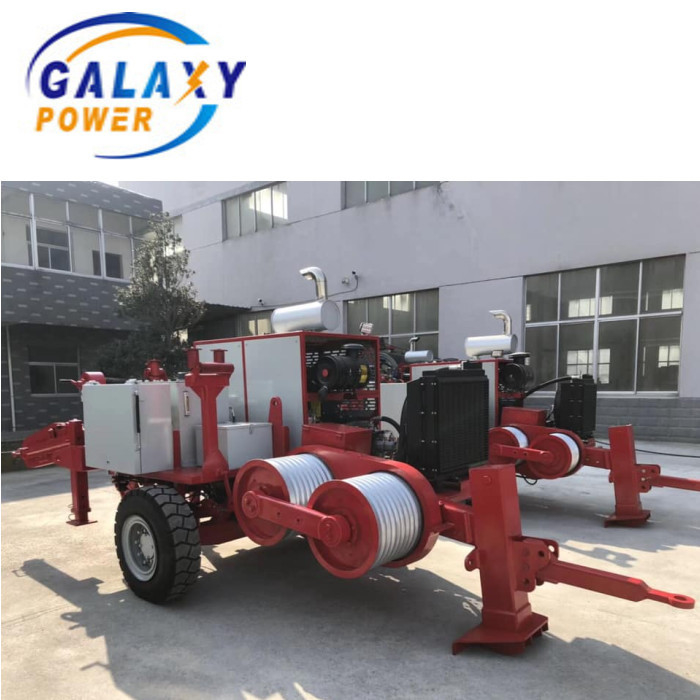

9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment

9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment
9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment
9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment 9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment 9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment

Large Image :  9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment

Product Details:
Place of Origin: China (Mainland)
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS90 / SA-QY90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment

Description
Key Words: Transmission Line Stringing Equipment ,Overhead Line Stringing Equipment ,Cable Pulling Stringing Equipment Max Intermittent Pull: 90KN
Max Continuous Pull: 80KN Diesel: 118kw(158hp)
Cooling System: Water Electrical System: 24V
Engine: Cummins Main Pump: German Rexroth
Main Motor Speed Reducer: German Rexroth Application: Transmission Overhead Line
High Light:

glass disc insulator

,

high voltage glass insulators



9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment







Cable Stringing Equipment



220KV (230 KV) Overhead Transmission Line Stringing Equipments  are used for

Two conductors or OPGW stringing, with 9 ton puller and 8 Ton Tensioner. The set

are mostly exported to for construction the main power line in South East Asia, Middle East,

Africa and South America market. As the profession manufacture of stringing equipment in China,

we are supplier of Power China, a cooperative unit of China State Grid







9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment 0

9Ton Overhead Line Hydraulic Puller OPGW/ADSS Cable Stringing Equipment 1









Cable Stringing Equipment

This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

Cable Stringing Equipment Characteristics

Bull-wheel diameter: 540mm

Groove number: 8

Max rope diameter: 21mm

Max diameter of rope reel: 1400mm

Total weight: 4350kg

Overall dimension (length*width*height): 4500*2100*2450mm

Overhead Line Stringing Equipment Characteristics

Bull-wheel diameter: 540mm

Groove number: 8

Max rope diameter: 21mm

Max diameter of rope reel: 1400mm

Total weight: 4350kg

Overall dimension (length*width*height): 4500*2100*2450mm

Overhead Line Stringing Equipment Engine

Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged

Cooling system: liquid

Electrical system: 24V

Overhead Line Stringing Equipment Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Main configuration

Engine: Cummins

hydraulic pump: German Rexroth

Main motor: German Rexroth

speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)

Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Cable and radio remote control fully replacing all controls at machine panel.

Remote diagnosis via GSM network with GPS modem, Synchronization system

Hydraulic system for drum stand control with flat face quick action couplings

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's workshop maintenance manual, in English
