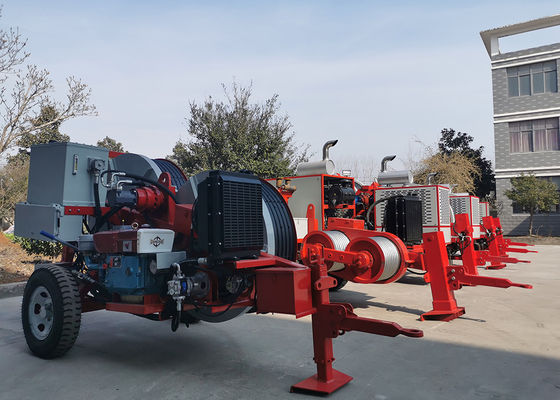

77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number

77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number
77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number
77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number 77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number 77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number 77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number

Large Image :  77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO9001 CE
Model Number: GS60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number

Description
Product Name: Transmission Line Equipment Groove Number: 7
Max Intermittent Pull: 60KN Speed At Max Pull: 2.5km/h
Max Diameter Of Rope Reel: 1400mm Application: Power Transmission
High Light:

cable pulling tools equipment

,

pulling machine equipment

77kw 103hp 60KN Transmission Line Equipment Hydraulic Puller With 7 Groove Number



Quick Detail

  • Model: GS60
  • Dimensions of the whole machine: 3800*2100*2300mm

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.



Configuration



  • Hydraulic dynamometer with set-point and automatic control of maximum pull.
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine.
  • On board reel winder with automatic level wind, suitable for standard reel mod.1100 and 1400
  • Hydraulic front stabilizer
  • Grounding connection point



Main configuration





  • Main pump: German Rexroth
  • Main motor speed reducer: German Rexroth
  • Tail bracket hoisting motor: America Eton
  • Hydraulic meter: German
  • Operating handle: German Rexroth



Parameter table



Model   GS40 GS60 GS90 GS120 GS150 GS180 GS220 GS280 GS380
Max intermittent pull KN 40 60 90 120 150 180 220 280 380
Max continuous pull KN 30 50 80 100 120 150 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5 5 5
Pull at max speed KN 20 25 40 50 60 75 90 120 170
Diesel kw(hp) 77(103) 77(103) 118(158) 129(173) 129(173) 239(320) 239(320) 298(400) 440(590)
Cooling system   Water Water Water Water Water Water Water Water Water
Electrical system V 24 24 24 24 24 24 24 24 24
Bull-wheel diamete mm 400 450 540 600 600 700 760 960 960
Groove number   7 7 8 10 10 10 10 11 11
Max rope diameter mm 16 18 21 24 24 27 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1400 1600 1400 1600 1600 1900
Total weight kg 3000 3500 4680 4800 5500 6800 6800 12800 13600



Hydraulic Transmission



Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Additional Devices

  • Lighting system for the trailer
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter (extra charge)

Transmission Line Equipment

  • Lighting system for the trailer
  • Hydraulic rope clamp for reel change
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Extra shaft
  • Digital speed and meter counter (extra charge)

77kw 103hp 60KN Transmission Line Equipment With 7 Groove Number 0



COMPANY PROFLIE


Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
