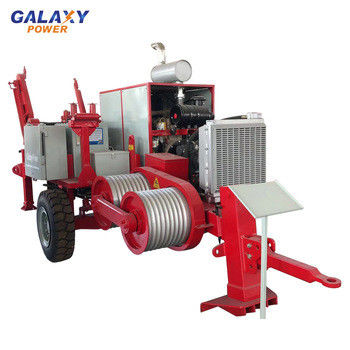

Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines

Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines
Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines
Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines

Large Image :  Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines

Product Details:
Place of Origin: Jiangsu,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 20-30 days
Supply Ability: 100sets/month

Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines

Description
Product Name: 9T Stringing Equipment For Overhead Power Lines Max Intermittent Pull: 90KN
Max Continuous Pull: 80KN Bull-wheel Diameter:: 540mm
Groove Number: 8 Max Diameter Of Rope Reel: 1400mm
Max Rope Diameter: Cummins Main Pump: German Rexroth
High Light:

cable pulling tools equipment

,

pulling machine equipment





Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines





9T Stringing Equipment For Overhead Power Lines Description:



1. Overhead Line Stringing Equipment

2. Hydraulic Tensioner

3. Diesel: Cummins 118kw(158hp)

4. Main pump and motor: German Rexroth

5. Operating handle: German Rexroth

6. Max rope diameter: 18mm

7. Max pull: 90kN

8. Max conductor diameter: 40mm

9. Brand:GALAXY





9T Stringing Equipment For Overhead Power Lines Configuration:


Negative self-acting hydraulic brakes
Hydraulic dynamometers with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Digital meter counters
Control instruments for hydraulic system and diesel engine
Rigid axles for towing at max speed of 30km/h with mechanical parking brake
Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls
Hydraulic front stabilizer
Grounding connection point





9T Stringing Equipment For Overhead Power Lines Additional Devices:


·Lighting system for the trailer
·Hydraulic brake system for the trailer(extra charge)
·2 hydraulic conductor clamps for drum change
operations (extra charge)
·Electronic pull and speed recorder





9T Stringing Equipment For Overhead Power Lines Performance:


Max pull: 90kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 40kN
Max Tension: 90kN
Max Speed: 5km/h





9T Stringing Equipment For Overhead Power Lines Description:


The machine is suitable to string one or two ropes or bundled conductors. The bull-wheel grooves are made

of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.





9T Stringing Equipment For Overhead Power Lines Characteristics:


Bull-wheel diameter: 1500mm
Max rope diameter : 18mm
Max conductor diameter: 40mm
Total weight: 4600kg
Overall dimension (length*width*height): 4700×2300×2700mm





9T Stringing Equipment For Overhead Power Lines Main configuration:



Engine Cummins
Main pump German Rexroth
Main motor speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German
Operating handle: German Rexroth





9T Stringing Equipment For Overhead Power Lines Engine:


Diesel 118kw(158hp)
Cooling system water
Electrical system 24V





Hydraulic Transmission:


Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.





Additional Devices:



·Lighting system for the trailer
·Hydraulic rope clamp for reel change
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h
·Extra shaft
·Digital speed and meter counter





Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines 0









Company History:



Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in R & D,

manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner,

underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical

service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China

which supply more than 200 varieties kinds of goods now.



Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines 1



Production Line:

We have five production lines.

Main configurations of our machine are from Germany and USA

Engine: American Cummins

Main pump: German Rexroth

Main motor: German Rexroth

Speed reducer: German Rexroth

Tail bracket hoisting motor: Amercian Eton

Hydraulic meter: German

Operating handle: German Rexroth



Pulling ADSS/OPGW Cable 9T Stringing Equipment For Overhead Power Lines 2
