Product Details:
|
| Product Name: | Transmission Line Equipment | Groove Number: | 7 |
|---|---|---|---|
| Diesel: | 77kw(103hp) | Total Weight: | 3500kg |
| Speed At Max Pull: | 2.5km/h | Max Diameter Of Rope Reel: | 1200mm |
| Overall Dimension: | 3800x2100x2300mm | Application: | Electric Power Transmission And Distribution |
| High Light: | cable pulling tools equipment,pulling machine equipment |
||

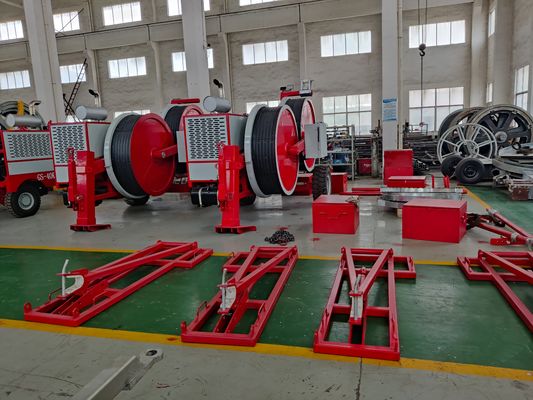

hydraulic puller 40KN Transmission Line Equipment with Diesel 77kw 103hp
Quick Detail
Together with the tensioner, this model allows tension threading of 220kV lines in mountainous and hilly areas and can be used for traction threading of OPGW or ADSS cables in a variety of terrains.
Quick Detail
Configuration
Additional Devices
Hydraulic Transmission
Closed hydraulic circuit for reducing speed changes in both directions of rotation.The machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur
Performance parameter
| Model | GS40 | GS60 | GS90 | GS120 | GS150 | GS180 | GS220 | GS280 | GS380 | |
| Max intermittent pull | KN | 40 | 60 | 90 | 120 | 150 | 180 | 220 | 280 | 380 |
| Max continuous pull | KN | 30 | 50 | 80 | 100 | 120 | 150 | 180 | 250 | 350 |
| Speed at max pull | km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Max speed | km/h | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Pull at max speed | KN | 20 | 25 | 40 | 50 | 60 | 75 | 90 | 120 | 170 |
| Diese | kw(hp) | 77(103) | 77(103) | 118(158) | 129(173) | 129(173) | 239(320) | 239(320) | 298(400) | 440(590) |
| Cooling system | Water | Water | Water | Water | Water | Water | Water | Water | Water | |
| Electrical system | V | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Bull-wheel diamete | mm | 400 | 450 | 540 | 600 | 600 | 700 | 760 | 960 | 960 |
| Groove number | 7 | 7 | 8 | 10 | 10 | 10 | 10 | 11 | 11 | |
| Max rope diameter | mm | 16 | 18 | 21 | 24 | 24 | 27 | 30 | 38 | 38 |
| Max diameter of rope reel | mm | 1200 | 1400 | 1400 | 1400 | 1600 | 1400 | 1600 | 1600 | 1900 |
| Total weight | kg | 3000 | 3500 | 4680 | 4800 | 5500 | 6800 | 6800 | 12600 | 13600 |
Transmission Line Equipment
COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
