Product Details:
|
| Product Name: | 30mm Overhead Transmission Line Tool Anti Twist Rope Steel Wire Rope 6 Squares 12 Strands | Application: | Construction |
|---|---|---|---|
| Breaking Load: | 540KN | Diameter: | 30mm |
| Strands Number: | 12 | Reel Diameter: | 1600mm |
| High Light: | anti twist wire rope,stainless wire rope |
||

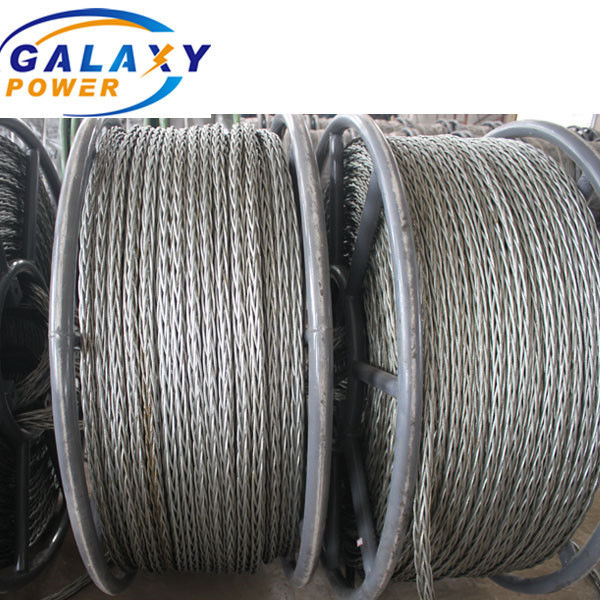

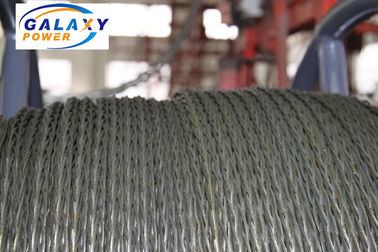

30mm Overhead Transmission Line Tool Anti Twist Rope Steel Wire Rope 6 Squares 12 Strands
Description:
Anti-twist braided wire rope with high strength hot dip galvanized steel quality air processed by the
special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof,
not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power
lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other
major lift crane wire rope does not rotate when the required place.
Quick details:
Usage :
Applied to mechanical pulling and tensioning release conductors as pulling rope or leading rope.
Feature:
It can homogeneously distribute the pressure between the elementary wires. The special rope
can increase efficiency during the overhead transmission line stringing work. The rope is packed
in steel drum which can be installed directly on the reel winder of puller.
Technical Data:
| Item no. | Normal Diameter (mm) | Structure | Breakage tension(kN) | Standard Length (m) |
Diameter of spool (mm) |
Total weight (kgs) |
| YL9-12x19W | 9 | 12 Strands | 55 | 1000 | 850 | 294 |
| YL10-12x19W | 10 | 12 Strands | 55 | 1000 | 850 | |
| YL11-12x19W | 11 | 12 Strands | 80 | 1000 | 1000 | 454 |
| YL13-12x19W | 13 | 12 Strands | 120 | 1000 | 1100 | 642 |
| YL15-12x19W | 15 | 12 Strands | 158 | 1000 | 1250 | 886 |
| YL18-12x19W | 18 | 12 Strands | 210 | 1000 | 1400 | 1154 |
| YL20-12x29Fi | 20 | 12 Strands | 250 | 1000 | 1400 | 1394 |
| YL22-12X29Fi | 22 | 12 Strands | 320 | 1000 | 1400 | 1258 |
| YL24-12x29Fi | 24 | 12 Strands | 360 | 800 | 1440 | 1474 |
| YL28-12x29Fi | 28 | 12 Strands | 480 | 500 | 1600 | |
| YL30-12x29Fi | 30 | 12 Strands | 540 | 500 | 1600 | |
| YL20-18x19W | 20 | 18 Strands | 300 | 1000 | 1440 | 1368 |
| YL22-18X29Fi | 22 | 18 Strands | 389 | 800 | 1440 | |
| YL24-18x29Fi | 24 | 18 Strands | 440 | 800 | 1440 | |
| YL28-18x29Fi | 28 | 18 Strands | 580 | 500 | 1600 | 1655 |
| YL30-18x29Fi | 30 | 18 Strands | 658 | 500 | 1600 |
1900 |
