Max Intermittent Tension 30KN Hydraulic Tensioners With In Red

Max Intermittent Tension 30KN Hydraulic Tensioners With In Red
Max Intermittent Tension 30KN Hydraulic Tensioners With In Red
Max Intermittent Tension 30KN Hydraulic Tensioners With In Red Max Intermittent Tension 30KN Hydraulic Tensioners With In Red Max Intermittent Tension 30KN Hydraulic Tensioners With In Red

Large Image :  Max Intermittent Tension 30KN Hydraulic Tensioners With In Red

Product Details:
Place of Origin: CHINA
Brand Name: GALAXY
Certification: ISO9001 CE
Model Number: GL1X30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 10-30days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Max Intermittent Tension 30KN Hydraulic Tensioners With In Red

Description
Product Name: Hydraulic Tensioner Speed At Max Pull: 2.5km/h
Groove Number: 5 Max Intermittent Pull: 30KN
Diesel: 14kw(19hp) Application: Power Construction
High Light:

cable pulling tools equipment

,

pulling machine equipment

Hydraulic Tensioner Max Intermittent Tension 30kn Transmission Line Equipment Witn Cummins Engine



Quick Details:

  •  Max continuous tension: 1*30KN
  • Corresponding speed:2.5km/h
  • Max continous laying speed:5km/h
  • Corresponding tension:1*20KN
  • Tension wheel diameter:1300mm
  • Max diameter of applicable :40mm
  • Groove number:5
  • Total weight:2064kg
  • overall dimension (length*width*height):3700x1950x2150mm

Descripition:



The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.



Configuration:

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Grounding connection point

Hydraulic Transmission:

  • The machine can realize step less speed
  • The machine is provided with tension presetting system

Performance/Engine:



Model

Max

intermittent tension

Max continuous tension Speed at max tension Max speed Tension at max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
  kN kN km/h km/h kN kN km/h kw(hp)   V
GL1X30   30 2.5 5 15 20   12(16)   12
GL1X40 45 40 2.5 5 20 35   77(103) Water 24
GL1X50 50 40 2.5 5 25 45 2.4 77(103) Water 24
GL140IV 1x140 1x120 2.5 5 35 1x120 1.2 77(103) Water 24
GL2X35

2x40/

1x80

2x35/

1x70

2.5 5

2x20/

1x40

2x30/

1x60

5 77(103) Water 24
GL2X40

2x45/

1x90

2x40/

1x80

2.5 5

2x20/

1x40

2x35/

1x70

5 77(103) Water 24
GL2X50

2x55/

1x110

2x50/

1x100

2.5 5

2x25/

1x50

2x45/

1x90

5 77(103) Water 24
GL2X70

2x70/

1x140

2x65/

1x130

2.5 5

2x25/

1x50

2x60/

1x120

5 77(103) Water 24
GL2x70IV

2x70/

1x140

2x65/

1x130

2.5 5

2x25/

1x50

2x60/

1x120

5 77(103) Water 24
GL2X90

2x100/

1x200

2x90/

1x180

2.5 5

2x40/

1x80

2x80/

1x160

2

130kw

(2500r/min)

Water 24
GL4x50

4x50/

2x200

4x40/

2x80

2.5 5

4x20/

2x40

4x40/

2x80

1.25 77(103) Water 24



Characteristics:



Model Bull-wheel diameter Max conductor diameter Max optical fiber cable diameter Groove width Groove number Total weight Overall damension
  mm mm mm mm   kg mm
GL1X30 1300 40 21 60 5 2064 3700x1950x2150
GL1X40 1300 40 21 55 5 3430 4000x2000x2300
GL1X50 1300/1500 55 21 68 6 2400 4000x1900x2300
GL140IV 1500 40     16 10000 5500x2280x2700
GL2X35 1300 40     2x5 4500 4300x2250x2700
GL2X40 1300/1500 40     2x5 6230 4300x2250x2700
GL2X50 1300/1500 40     2x5 6000 4700x2300x2700
GL2X70 1700 40     2x6 7500 4700x2300x2700
GL2x70IV 1500 40     2x8 10000 5500x2280x2700
GL2X90 1900 50     2x6 7500 5400x2300x2700
GL4x50 1500 40     4x5 13000 5900x2300x2700



Main Configuration:



  • Engine: Japan Honda (or Robin)
  • Hydraulic pump: Tianjin Parker
  • Main motor: Tianjin Permco
  • Speed reducer: German Rexroth/Italy Brevini
  • Hydraulic meter: German



Additional Devices:



  • Air brake system for the trailer (extra charge)
  • Hydraulic conductor clamps for drum change operations (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h



Product Pictures:

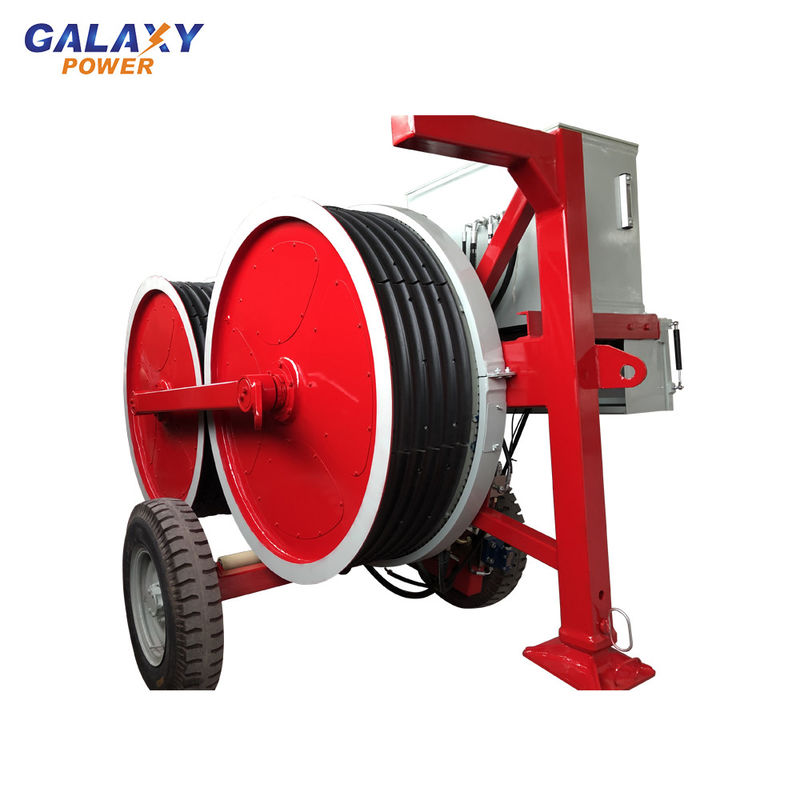

12kw(16hp) hydraulic tensioner tension machine



COMPANY PROFLIE:


Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.
