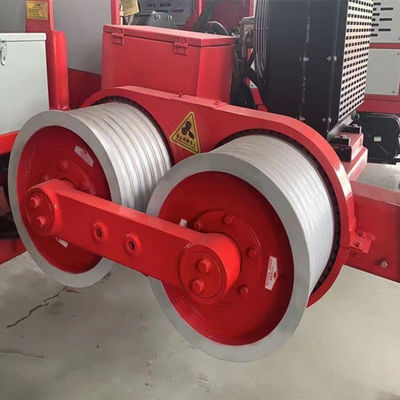

7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment

7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment
7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment
7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment 7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment 7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment

Large Image :  7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment

Product Details:
Place of Origin: Jiangsu,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GS40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 20-30 days
Supply Ability: 100sets/month

7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment

Description
Machine: 4Ton Transmission Line Stringing Equipment Max Intermittent Pull: 40KN
Max Continuous Pull: 30KN Speed At Max Pull: 2.5km/h
Bull-wheel Diameter: 400mm Groove Number: 7
Max Rope Diameter: 16mm Application: Overhead Power Lines Construction
High Light:

cable pulling tools equipment

,

pulling machine equipment



7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment





4Ton Transmission Line Stringing Equipment Description:



4 Ton Hydraulic Winch Puller is used for overhead transmission line single conductor or OPGW stringing.

The machine is equipped with Cummins Water cooled Diesel Engine and Rexroth hydraulic pump.





4Ton Transmission Line Stringing Equipment Performance & Characteristics:



Model GS40
Stringing capacity 1 PILOT WIRE ROPE
Max. Pulling Force (KN) 40
Continuous Max. Pulling Force (KN) 30
Speed at Max. continuous pull: 2.5km/h
Max. Pulling Speed (m/min) 5km/h
Root Diameter of Bull wheel (mm) Φ400
Number of grooves 7
Max. Steel rope Diameter (mm) Φ16
Weight (kg) 3000
Dimension (mm) 3600x2600x2200





4Ton Transmission Line Stringing Equipment Engine:



Model of Diesel Engine Water cooled diesel engine
Power of Diesel Engine 77 KW(103hp)
Electrical System DC24V





4Ton Transmission Line Stringing Equipment Main configuration:



Engine Cummins
Main pump German Rexroth
Main motor speed reducer German Rexroth
Tail bracket hoisting motor American Eton
Hydraulic meter German
Operating handle: German Rexroth




4Ton Transmission Line Stringing Equipment  Configuration:


Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
Hydraulic front stabilizer
Grounding connection point




4Ton Transmission Line Stringing Equipment  Hydraulic Transmission:


Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.






4Ton Transmission Line Stringing Equipment Application:



The hydraulic puller is used to pull pilot wire rope for overhead transmission line. It is equipped with hydraulic

system, and can be easily used and maintained



7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment 0









Company Information:



Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in R & D,

manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner,

underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical

service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China

which supply more than 200 varieties kinds of goods now.





7 Grooves Cummins Diesel Max 4Ton Transmission Line Stringing Equipment 1



OEM&ODM:



We can do OEM/ODM. All of our products comply with international quality standards and are greatly

appreciated in a variety of different markets throughout the world.Our products sell in Australia,

Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc.

Our products are also very popular and best-selling in China.
