30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width

30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width
30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width 30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width

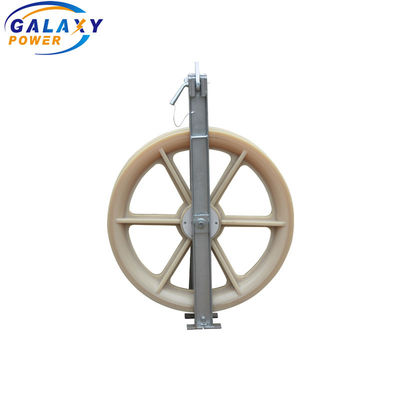

Large Image :  30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width

Product Details:
Place of Origin: China
Brand Name: GALAXY
Certification: ISO9001
Model Number: SHD-660X100
Payment & Shipping Terms:
Minimum Order Quantity: 10set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month

30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width

Description
Name: Single Wheel Bundled Pulley Brand: Galaxy
Surface: Hot Dip Galvanzied Material: Aluminum
Conductor Size: ≤500mm2 Overall Dimensions: 660X100mm
Weight: 30kg Rated Load: 20KN
High Light:

glass disc insulator

,

high voltage glass insulators

30kg Single Wheel Bundled Conductor Pulley For Transmission Line Accessories With 100mm Width



Quick details:



  • Transmission Line Stringing Accessories
  • Conductor/Cable/OPGW Bundled Conductor Pulley
  • Diameter: 660mm Wheel Width: 100mm
  • Single Aluminum Wheels
  • Galvanized Steel Frame
  • With Rubber Covered or Without
  • Rated Load: 20kN
  • Conductor Size: under 500mm2



Description:


Stringing blocks have different diameter were used to string different conductors.

Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.



Usage:



Protect the cable and conductor from fricting when they are laying.They can save time and effort.

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements



Product parameters:



Model Wheel size Diameter x Width (mm) Conductor size (mm2) Rated load (kN) Weight (kg) Wheel material
SHD-120X30 120x30 25~70 5 2.1 Aluminum
SHD-160X40 160X40 95~120 10 3.1
SHD-200X40 200X40 150~240 15 3.7
SHD-200X60 200X60 150~240 15 4.1
SHD-250X40 250X40 150~240 20 5.1
SHD-250X60 250X60 300~400 20 5.4
SHD-270X60 270X60 300~400 20 6.7
SHD-320X60 320X60 300~400 20 10.4
SHD-400X80 400X80 400~500 20 11.9
SHDN-120X30 120x30 25~70 5 1.5 Nylon
SHDN-160X40 160X40 95~120 10 2.3
SHDN-200X40 200X40 150~240 15 2.5
SHDN-200X60 200X60 150~240 15 3.0
SHDN-250X40 250X40 150~240 20 3.6
SHDN-250X60 250X60 300~400 20 3.8
SHDN-270X60 270X60 300~400 20 4.3
SHDN-320X60 320X60 300~400 20 7.5
SHDN-400X80 400X80 400~500 20 8
SHD-508X75 508X75 400 20 22.3 Aluminum
SHD-660X100 660X100 500 20 30



Transmission Line Accessories:



30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width 0



COMPANY PROFLIE:


Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.

30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width 1
