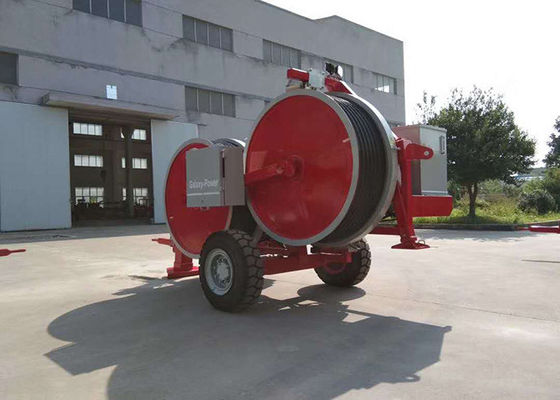

1x30KN 12kw(16hp) Diesel Hydrauic Tensioner Transmission Line Equipment
3Ton Transmission Line Equipment Description:
3 Ton Hydraulic Cable Tensioner is used for single conductor or OPGW stringing on overhead transmisson line.

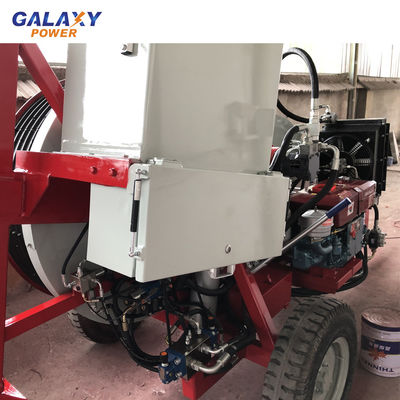

It is equipped with water cooled Cummins diesel engine and German Rexroth hydraulic pump,
Main motor,Hydraulic meter,Operating handle
3Ton Transmission Line Equipment Performance:
| Model | GL1x30 |
| Max. Tension Force (KN) | 30 |
| Continuous Tension Force (KN) | 25 |
| Max. Stringing Speed(km/h) | 5 |
| Max. Pullback force (KN) | 20 |
| Max. Pullback speed (km/h) | 2.5 |
| Diameter of wheel (mm) | Φ1300 |
| Number of grooves | 5 |
| Max. Conductor Diameter (mm) | Φ40 |
| Power of Engine | 12KW |
| Electrical system: | DC12V |
| Weight (kg) | 2064 |
| Dimension (m) | 3.7x1.95x2.15 |
3Ton Transmission Line Equipment Characteristics:
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | kg | mm | ||
| GL1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300x1250x1620 |
| GL1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080x1930x2300 |
| GL1X20II | 800 | 23 | 45 | 5 | 950 | 2400x1500x1650 | |
| GL1X20III | 800 | 22.5 | 55 | 5 | 1150 | 2500x1500x1700 | |
| GL1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700x1950x2150 |
| GL1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000x2000x2300 |
| GL1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000x1900x2300 |
| GL140IV | 1500 | 40 | 16 | 10000 | 5500x2280x2700 | ||
| GL2X35 | 1300 | 40 | 2x5 | 4500 | 4300x2250x2700 | ||
| GL2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300x2250x2700 | ||
| GL2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700x2300x2700 | ||
| GL2X70 | 1700 | 40 | 2x6 | 7500 | 4700x2300x2700 | ||
| GL2x70IV | 1500 | 40 | 2x8 | 10000 | 5500x2280x2700 | ||
| GL2X90 | 1900 | 50 | 2x6 | 7500 | 5400x2300x2700 | ||
| GL4x50 | 1500 | 40 | 4x5 | 13000 | 5900x2300x2700 |
3Ton Transmission Line Equipment Main configuration:
| Engine | Cummins |
| Hydraulic pump | German Rexroth |
| Main motor | German Rexroth |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
3Ton Transmission Line Equipment Remarks:
There are three important steps for selection of hydraulic conductor tensioner:
First, it is important to know the diameter or model of biggest conductor in transmission line project,
because the weight of conductor can be used to calculate the tension force on conductor.
Second, how many conductors in one phase of transmission line? Is it single conductor, two conductors,
or four conductors transmission line?
Third, How is working condition of construction site? Is it Mountain area or flat lands? Are there big rivers
or forest in the stringing section? Are there any corner towers in one stringing section? How many towers
are there is one tension section?
3Ton Transmission Line Equipment Application:
It is suitable for single conductor, earth wire, OPGW and ADSS optic fiber cable stringing in overhead transmission
line stringing operation.
Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in
R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic
puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing
accessories and technical service for customer. Galaxy has developed as one of the largest stringing
equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.
Production Line:
We have five production lines.
Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor: German Rexroth
Speed reducer: German Rexroth
Tail bracket hoisting motor: Amercian Eton
Hydraulic meter: German
Operating handle: German Rexroth
OEM&ODM:
We can do OEM/ODM. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world.Our products sell in Australia,
Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc.
Our products are also very popular and best-selling in China.
