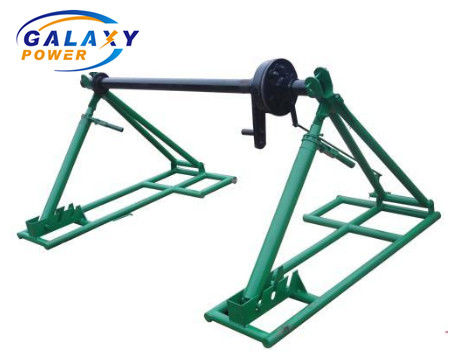

Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool

Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool
Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool

Large Image :  Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool

Product Details:
Place of Origin: Jiangsu Province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GLCVI
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.

Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool

Description
Product Name: 3T Mechanical Lifting Jack Stand Material: Welded Steel
Application: Cable Puller Capacity: 30KN
Drum Max Width: 1500-1700mm Drum Hole: 65-80mm
High Light:

1500mm mechanical drum

,

Mechanical Cable Puller Drum







Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool





Lifting Jack Stand Quick details:



  •  Transmission Line Stringing Equipment Accessories & Tools
  •  Hydraulic Drum Elevators
  •  Maximum drum size: 1500
  •  Rated Load: 30KN
  •  Welded Steel with protective coating
  •  Drum Hole: 65-80mm
  •  Maximum width of drum: ≤1100mm
  •  Galaxy Brand
  •

Lifting Jack Stand  Description:



Our Mechanical Drum Elevators are used for supporting and controlling the conductor reels (drums),

during the transmission line stringing operation. The drum elevators are made of welded steel with a

protective coating: the frame is completely detachable to reduce the dimensions during the transport.



Our Hydraulic reel elevator can be used together with Tesmec or Zeck machines,

please confirm the connection parts before confirm the order.





We have designed and manufactured 4 ton, 7 ton, 3 ton hydraulic reel elevators for different size of conductor drums.





Lifting Jack Stand  Specification:



Model Maximum drum size(mm) Maximum width of drum(mm) Drum hole(mm) Capacity(KN) Brake force(KN) Rope speed(m/min) Weight(kg)
GLCVI-228 1500 1100-1300 76-103 40 2 80 290
GYCVI-229 2000 1500-1700 100-120 70 2 80 500
GYCVI-230 1500 ≤1100 65-80 30 2 80 240




















Lifting Jack Stand  Additional Devices:


10 meters soft tube
Disk brake device





Features:



1) easy to carry
2) high quality
3) quick delivery





Application:



Mechanical Cable Drum Stand/Cable Drum Jack is applicable to the placement of the cable tray

along with hydraulic tensioner.



Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool 0







Maufacturer Introduction:



Galaxy power industry limited was established in 2016, a high-tech enterprise in China, We are specializing in

R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic

puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing

accessories and technical service for customer. Galaxy has developed as one of the largest stringing

equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.



Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool 1





Production Line:

We have five production lines.

Main configurations of our machine are from Germany and USA

Engine: American Cummins

Main pump: German Rexroth

Main motor: German Rexroth

Speed reducer: German Rexroth

Tail bracket hoisting motor: Amercian Eton

Hydraulic meter: German

Operating handle: German Rexroth



Drum Size1500mm 3T Mechanical Lifting Jack Stand Transmission Line Tool 2
