GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment

GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment
GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment
GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment

Large Image :  GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment

Product Details:
Place of Origin: Jiangsu Province,China
Brand Name: GALAXY
Certification: ISO/CE
Model Number: GL1x30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Contact Now

GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment

Description
Product Name: Power Line Stringing Equipment Max Continuous Tension: 1x30KN
Bull-wheel Diameter: 1300mm Max Conductor Diameter: 40mm
Max Optical Fiber Cable Diameter: 21mm Groove Width: 60mm
Groove Number: 5 Application: Transmission Overhead Line
Highlight:

Hydraulic Power Line Stringing Equipment

,

3T Power Line Stringing Equipment

,

30KN Power Line Stringing Equipment



GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment

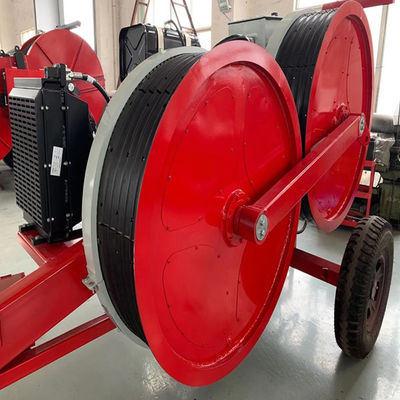

3T Power Line Stringing Equipment HYDRAULIC TENSIONER GL1×30
The machine is hydraulically controlled for the tensile force and complete with quality parts and
components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision
filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit
provides the traction of conductors at both positive and negative directions. The single-beam trailer
chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to
achieve a portable compact integrity easy to be loaded, transported and transferred.



3T Power Line Stringing Equipment Performance :
Max continuous tension 30kN
Speed at max pull 2.5km/h
Max speed 5km/h
Tension at max speed 15kN
Max reverse pulling force 20kN


3T Power Line Stringing Equipment Engine :
Gassoline engine 12kw(16hp)
Electrical system 12V


3T Power Line Stringing Equipment Characteristics :
Bull-wheel diameter : 1300mm
Max conductor diameter : 40mm
Max Optical fiber cable diameter : 21mm
Groove width : 60mm
Groove number  : 5
Total weight : 2064kg
Overall dimension 3700×1950×2150mm


3T Power Line Stringing Equipment Main Configuration :
Engine Japan Honda (or Robin)
Hydraulic pump Tianjin Parker
Main motor Tianjin Permco
Speed reducer German Rexroth / Italy Brevini
Hydraulic meter German WIKA


Configuration:
·Hydraulic dynamometers
·Hydraulic oil cooling system
·Grounding connection point


Hydraulic Transmission :
·The machine can realize step less speed
·The machine is provided with tension presetting system


Additional Devices :
·Air brake system for the trailer (extra charge)
·Hydraulic conductor clamps for drum change operations (extra charge)
·Swivel guide rope roller
·Trailer for towing at max speed of 30 km/h


GL1X30 Diesel Max 3T Hydraulic Tensioner Power Line Stringing Equipment 0
