Product Details:
|
| Product Name: | Hydraulic Puller | Max Intermittent Pull: | 60KN |
|---|---|---|---|
| Speed At Max Pull: | 2.5km/h | Max Rope Diameter: | 24mm |
| Bull-wheel Diameter: | 1400mm | Application: | Power Construction |
| High Light: | 60kn hydraulic pulling machine,2.5km/h hydraulic pulling machine,24mm hydraulic pulling machine |
||

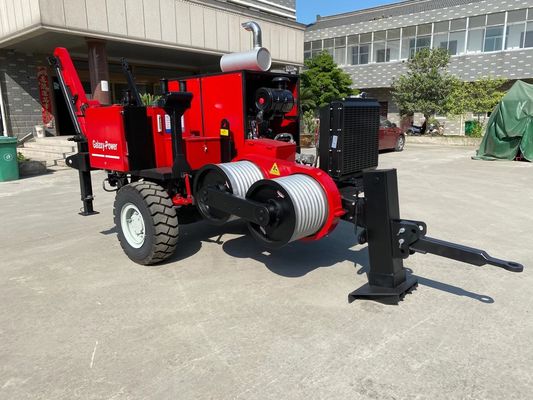

60 KN Hydraulic Puller For Stringing Equipment Overhead Line For Electric Construction
The machine is suitable to string one or two ropes or bundled conductors with two pairs of bull-wheels with completely independent controls. The bull-wheel grooves are made of wear-proof nylon sectors. The machine is completely electronically controlled.
2 Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull prosetting system that maintains the preset pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
| Model | GS60 | ||
| Max intermittent pull | KN | 60 | |
| Max continuous pull | KN | 50 | |
| Speed at max pull | km/h | 2.5 | |
| Max speed | km/h | 5 | |
| Pull at max speed | KN | 25 | |
| Diesel | kw(hp) | 77(103) | |
| Cooling system | Water | Water | |
| Electrical system | V | 24 | |
| Bull-wheel diamete | mm | 450 | |
| Groove number | 7 | ||
| Max rope diameter | mm | 18 | |
| Max diameter of rope reel | mm | 1400 | |
| Total weight | kg | 3500 | |
